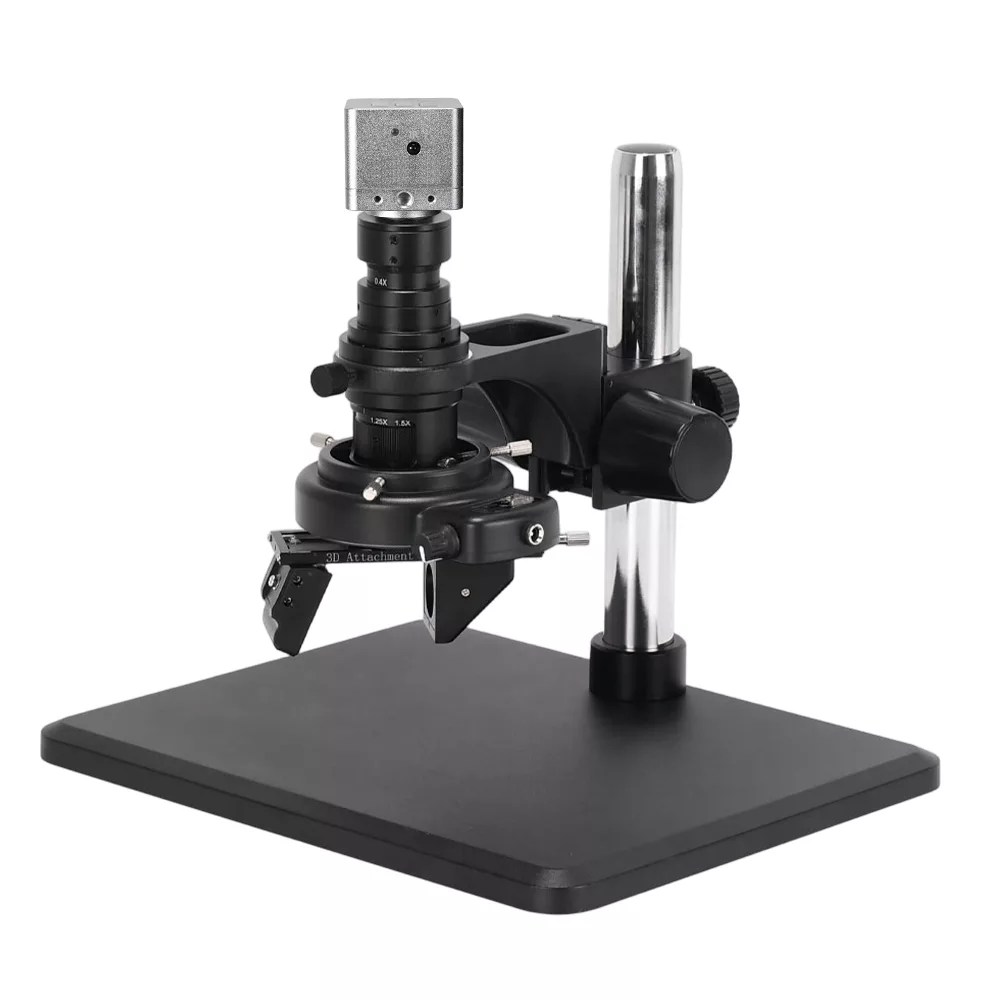

Real 4K UHD 3D Industrial Digital Microscope System (HY-6120s) – Sony IMX678 Sensor, 200X Parfocal 3D/2D Lens & Boom Stand for PCB Micro-Soldering

Real 4K UHD 3D Industrial Digital Microscope System High-Precision HY-6120s Sony IMX678 Sensor Camera with 200X Parfocal 3D/2D Switchable Lens & Heavy-Duty Stand — Engineered for PCB Repair, Micro-Soldering & Industrial Quality Control. 📷 Sony IMX678 4K Sensor 🔍 3D / 2D View Switch 🔍 200X Parfocal Zoom ⚡ Dual HDMI / USB Output Key Features & Highlights 🎯 Ultra-Clear Sony IMX678 4K Sensor Equipped with a native 1/1.8″ Sony CMOS IMX678 sensor (2.0μm x 2.0μm pixel size), delivering real 4K UHD resolution (3840×2160 @ 30FPS) via HDMI and drive-free USB 2.0. Exceptional clarity for detecting hairline cracks and tiny SMT component flaws. 🔄 3D/2D Angle-Switchable Objective Lens Seamlessly slide the 3D adapter to toggle between 360° stereoscopic observation and vertical 2D inspection. Gain total depth awareness of solder joints, IC pins, and micro-structures without tilting the specimen. 🔬 200X Continuously Variable Zoom Features a 0.7X–5X objective lens with a 0.4X eyepiece, providing up to ~203X magnification on a 24″ display. Maintains focus across zoom range (parfocal) with an optimal 100mm working distance for easy soldering tool access. 💡 144-LED Shadowless Illumination & Boom Stand Includes a high-density 144-LED ring light with 0–100% continuous brightness adjustment. Supported by a heavy-duty 2.6kg boom stand (37.5 x 24.5 x 34 cm) for rock-solid stability and vibration-free inspection. 🛠️ On-Screen Firmware Measurement & Crossline System Operate directly via IR remote control without a PC connection! Supports up to 8 customizable cross lines, 2 scale grid lines, 2 dotted lines (color, width, position adjustable), AWB color calibration, exposure adjustment, digital zoom, horizontal/vertical mirror, and direct TF card recording (up to 512GB). Magnification & Field of View (FOV) Chart *Tested with 1/2″ CMOS sensor on a 24-inch monitor using 0.7X–5X objective lens & 0.4X eyepiece lens. Zoom Ratio 0.28 0.4 0.5 1.0 1.5 2.0 Field of View (FOV) 29 mm 20 mm 16 mm 8 mm 5.33 mm 4 mm On-Screen Magnification 28.4X 40.6X 50.8X 101.6X 152.4X 203.2X Detailed Specifications 📷 Camera System Specifications (HY-6120s) Image Sensor Sony CMOS IMX678 (1/1.8 inch, 2.0μm x 2.0μm Pixel Size) HDMI Output Resolution 4K (3840x2160P @ 30FPS) / 2K (1920x1080P @ 60FPS) — 4:3 & 16:9 Screen Support USB 2.0 Output (Drive Free) 3840x2160P @ 30FPS / 1920×1080 @ 60FPS / 1280×720 @ 60FPS Interfaces & Storage HDMI (Type A), USB (Type B), Micro SD Slot (Supports up to 512GB) Image & Color Controls AWB (Auto/Manual/Independent RGB), Auto/Manual Exposure, Sharpness, Contrast, Color Gain, Mono, Negative, Mirroring On-Screen Measurement Lines 8 Cross lines, 2 Scale lines, 2 Dotted lines (customizable color, width, position) Lens Mount & Power Supply C/CS Mount | DC 12V Input (AC 100-240V Adapter), Ultra-low power consumption (≤0.15W) Language Support English, Simplified Chinese, French, Spanish, Japanese, German, etc. Camera Dimensions 45 x 45 x 38 mm (L x W x H) 🔎 3D/2D Objective Lens Specifications (HY-3D200) Optical Zoom Range 0.7X – 5.0X Continuously Variable Zoom (Approx. 10X – 200X on 24″ display) Working Distance & Connector 100 mm Working Distance | Standard C-Mount Connector | 0.4X Eyepiece Lens 3D/2D Mode Switching Manual sliding adapter to switch instantly between 3D stereoscopic view & 2D flat view 💡 Lighting & Heavy-Duty Stand Specifications 144 LED Ring Light 144 White LEDs, 100,000h lifespan, shadow-free, 0–100% dimmable, fits lens dia 30–63mm Big Boom Stand Base Size: 37.5 x 24.5 x 34 cm | Heavy Base Weight: 2.6 kg (Anti-vibration) 📦 Package Includes 1 x 4K Digital Microscope Camera (HY-6120s) 1 x 200X Objective Lens with 3D/2D Adapter 1 x Big Boom Stand (2.6kg Base) 1 x 144-LED Adjustable Ring Light 1 x Infrared Remote Controller 1 x HDMI Cable & 1 x USB Cable 1 x DC 12V Power Adapter 1 x Software Disk & User Guide 🚚 Packaging & Shipping Specs Total Gross Weight: 3.7 kg Package Box Dimensions: 38.5 x 32 x 25 cm Camera Package Size: 16 x 10 x 8 cm
