27300 liter tank i Syrafast 316

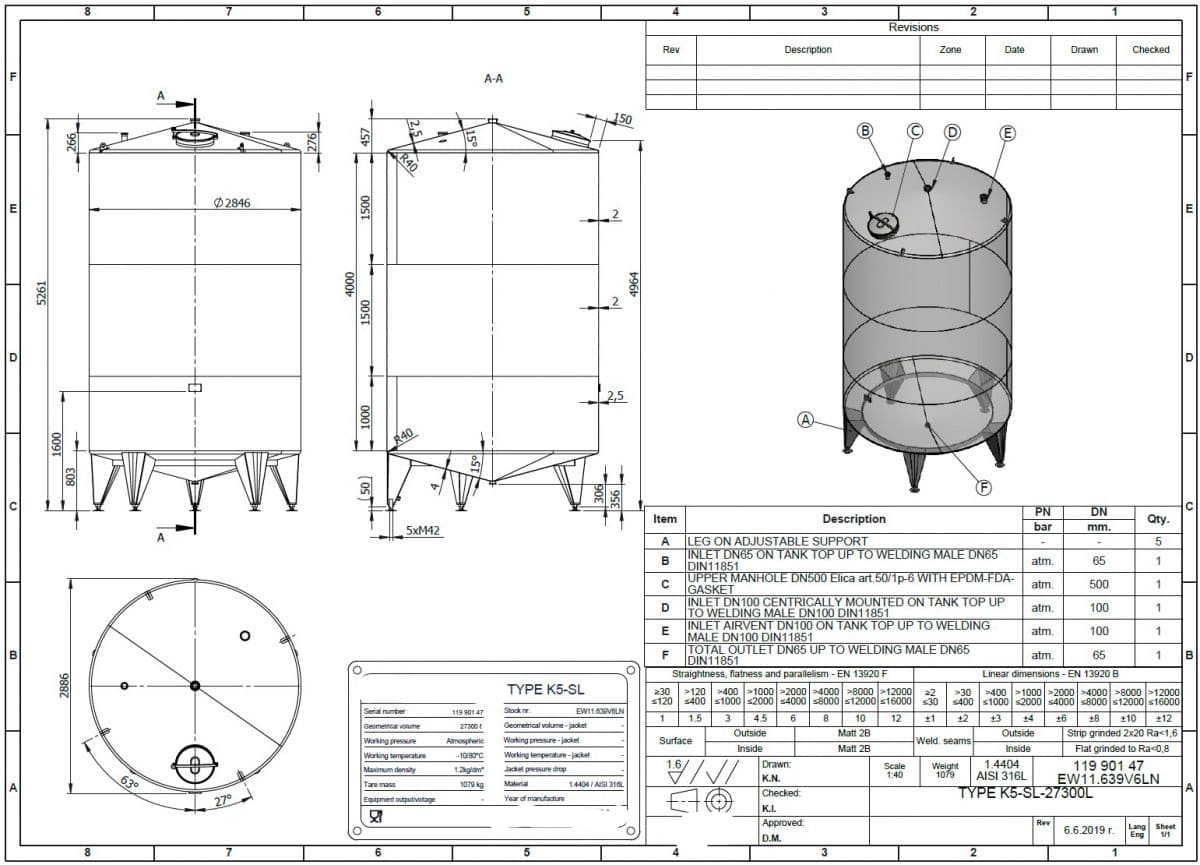

item available on order Article type: brand new storage tank – type K5-SL Volumetric volume (L): 27.300 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Finish stainless steel: 2B Pressure in tank: ATM – atmosferic Max. temperature (°C): 100 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Top type: conical 15 ° Shape of tank: cylindrical Bottom type: conical 15 Total discharge: yes Fixation points: 5 adjustable feet Manway(s): RVS 316 Gasket manway(s): EPDM Fixation point(s): RVS 304L Suitable for food industry: yes Documents included: yes, optional Technical drawing included: yes Registration plate on the tank: yes Flange for agitator: no Number of manways: 1 Position of manway: at the top Height manhole 1 (mm): 500 mm Tank outlet: inside Ø 65 mm Outlet type: DIN11851 male Agitator: no, optional Top: 2,50 mm Cylinder: 2 mm Bottom: 4 mm Distance from outlet to ground: 256 mm Outer diameter tank: 2.846 mm Cylinder height: 4.000 mm Total height of tank: 5.300 mm Empty weight tank: 1.079
