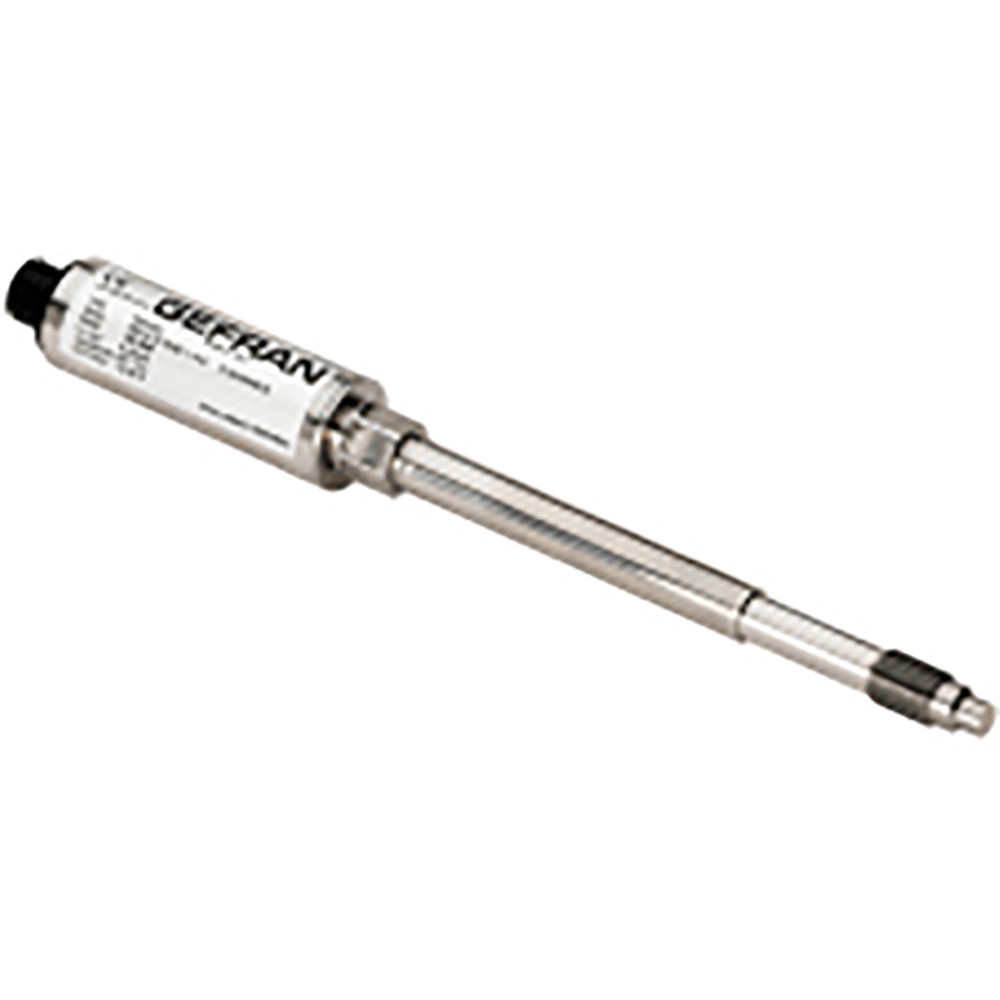

GEFRAN F008535 – M30-6-M-P10M-1-4-0 Melt Pressure Transducer GEFRAN F008535 is an industrial melt pressure transducer from the Gefran M3 series, identified by model M30-6-M-P10M-1-4-0 and configuration code 2130X000X00. The F008535 is designed for pressure measurement in high-temperature industrial processing applications, including plastics extrusion and other processes requiring reliable melt pressure monitoring. The M3 series uses hydraulic pressure transmission and strain-gauge technology to convert the measured pressure into an electrical signal. Technical specifications Specification F008535 Manufacturer GEFRAN Part Number F008535 Model M30-6-M-P10M-1-4-0 Configuration Code 2130X000X00 Product Type Melt Pressure Transducer / Pressure Sensor Series M3 / M30 Pressure Range 0–10,000 PSI Output 3.3 mV/V Connector 6-pin Rigid Stem Length 6 in Flexible Stem No Process Connection 1/2-20 UNF Pressure Transmission Hydraulic Sensing Technology Strain gauge Fill System Mercury Maximum Media Temperature Up to 400°C Application Melt pressure / high-temperature industrial processing F008535
