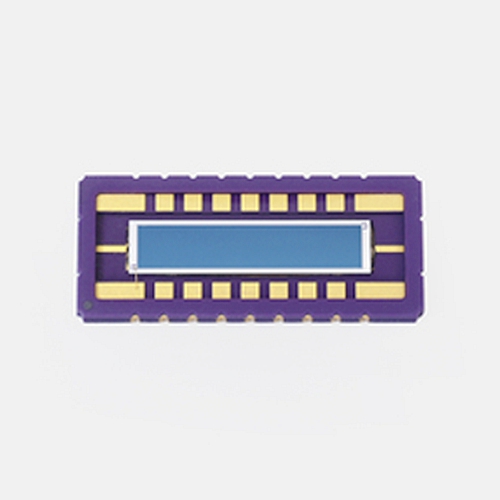

hamamatsu Si PIN photodiode S7509

hamamatsu Si PIN photodiode S7509 hamamatsu Si PIN photodiode S7509 The S7509 is a Si PIN photodiode sealed in chip carrier packages suitable for surface mount using automated solder reflow techniques. This photodiode has a large photosensitive area, making it suitable for spatial light transmission where a wide field-of-view angle is required. Other applications include POS scanners, power meters and analytical instruments. Features – Photosensitive area: 2 × 10 mm – Ceramic chip carrier package for surface mount – Suitable for solder reflow – High sensitivity – Packing Tray: S7509 Reel: S7509-10 Specifications Photosensitive area 10 × 2 mm Package Ceramic Package category Surface mount type Cooling Non-cooled Reverse voltage (max.) 30 V Spectral response range 320 to 1100 nm Peak sensitivity wavelength (typ.) 960 nm Photosensitivity (typ.) 0.72 A/W Dark current (max.) 5000 pA Cutoff frequency (typ.) 20 MHz Terminal capacitance (typ.) 40 pF Noise equivalent power (typ.) 1.7×10-14 W/Hz1/2 Measurement condition Ta=25 ℃, Typ., Photosensitivity: λ=λp, Dark current: VR==10 V, Cutoff frequency: VR=10 V, Terminal capacitance: VR=10 V, f=1 MHz, Noise equivalent power: VR=10 V, λ=λp, unless otherwise noted
