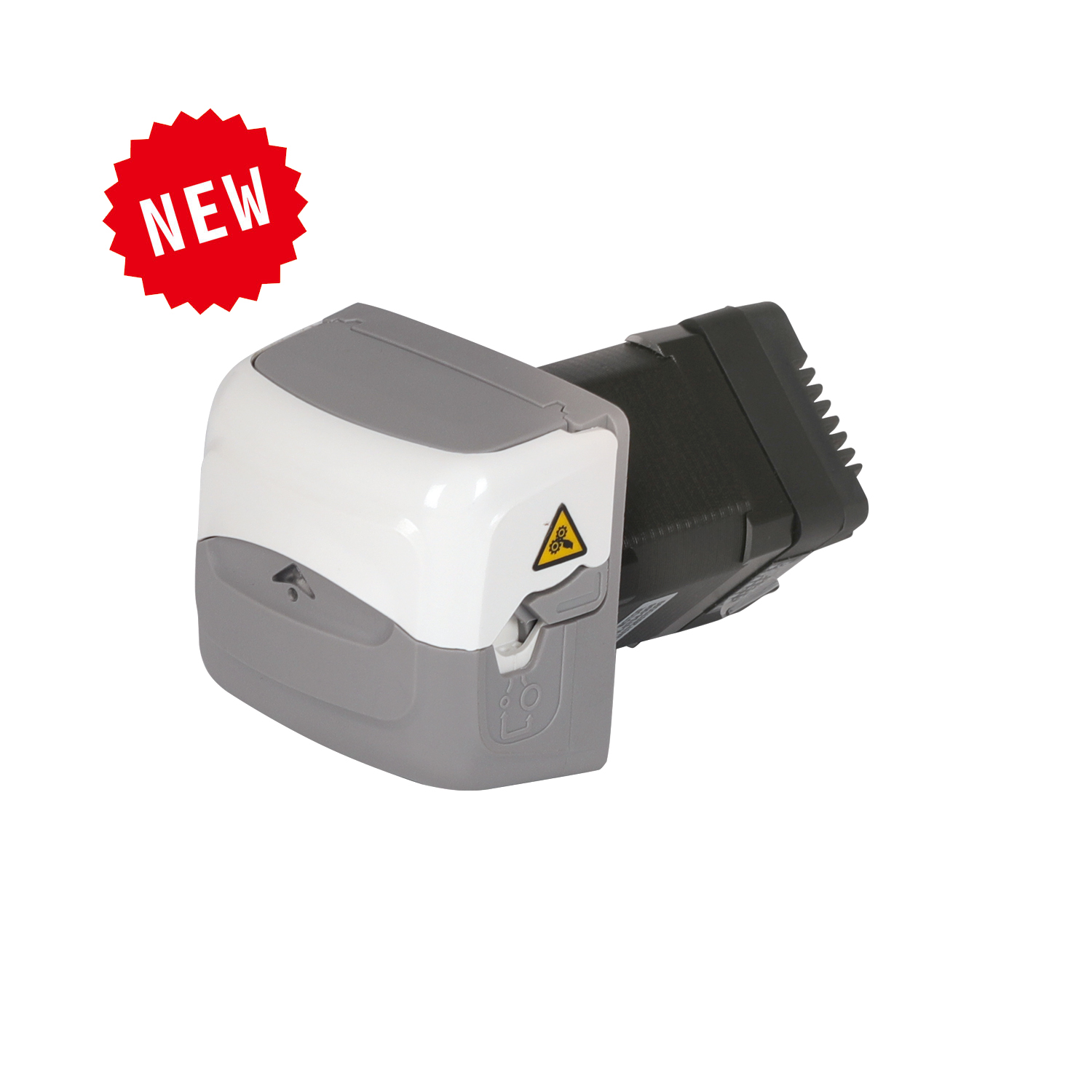

B400K1/K2/K3FT1505 Peristaltic Pump

Peristaltic Pump Introduction • The product has an attractive appearance and a compact design. • Pulse stability. • The tube installation process is simple, and it prevents the tube from automatically stretching after installation. • It features a configurable setup with two adjustable pressure modes: standard pressure and high pressure. • Driven by a stepper motor, the pump head requires no special maintenance. • The control method is analog control (K1/K2/K3 correspond to 4–20 mA / 0–5 V / 0–10 V). Application • Attractive appearance, compact size, and suitable for installation in space-limited areas. • Precise volumetric and flow-rate transfer, focused on low-flow applications. • Easy to integrate in OEM setups. Function and Features • The drive motor is directly connected to the pump head, making installation and use very convenient. • The enclosure is made of modified nylon; the rollers are made of PET. • With high corrosion resistance, the performance is reliable. • Flip cover design, easy to use and quick, saves operating space, • Easy and convenient tube replacement; the self-adaptive tube clamp can accommodate various tubing sizes. • Pressure levels can be adjusted according to requirements to suit different operating needs. • The clamp’s position can be adjusted and switched to fit various tube specifications, ensuring it meets different installation needs. Pump Parameters Motor Types: 42 stepper motor Control and Drive Methods: DC12-24V Power: 20W Control Mode: Analog input (K1/K2/K3 correspond to 4–20 mA / 0–5 V / 0–10 V) Start-Stop Method: External level signal control (DC 5–24 V) Direction Switch Method: External level signal control (DC 5–24 V) Speed Range: ≤400rpm Max flow Rate: ≤370mL/min(Silicone tube) Channel Number: 1 channel Roller Number: 4 rollers Running Direction: Clockwise/Counterclockwise rotation Lift Height: 8 m Suitable Tube Wall Thickness: 1.6 mm Suitable Tube Specifications: 13#(0.8mm), 14#(1.6mm), 19#(2.4mm), 16#(3.2mm), 25#(4.8mm) Tube Material: Silicone tube, Pharmed tube, A-60G Tube Installation Method: Adaptive tube clamps Types of Tube Pressure: Elastic gap Material of Pump Head Shell: Enhancing Nylon Material of Pump Head Roller: Roller: PET; Metal parts: 304 Noise: ≤ 60db (testing environment noise ≤40dB, horizontal distance between test product and noise meter is 1 meter) Pump Head Weight: 470g (without tube) Dimensions: 64mm×64mm×113mm Working Environment: Temperature 0- 40°C, , Relative humidity＜ 85% RH Storage Environment: In a clean and well-ventilated environment with ambient temperatures ranging from -40 to +50°C,and relative humidity not exceeding 95%, the air must not contain corrosive, flammable gases, oil mist, or dust. Applicable Tube Model and Flow Reference Table Tube Material Tube No. Flow Rate(mL/min) 1rpm 30rpm 60rpm 100rpm 200rpm 400rpm Pharmed 13# 0.04 1.2 2.5 4.1 8.3 16.5 14# 0.14 4.2 8.5 14 28 57 19# 0.29 8.7 17.5 29 58 115 16# 0.5 15 30 50 100 200 25# 0.92 27 55 92 184 370 • The above flow data were all tested using a Lead Fluid silicone tube to pump pure water under laboratory conditions with normal temperature and pressure. This data is for reference only. Due to pressure in actual use , temperature, medium characteristics, tube material and other specific factors, the specific situation needs to consult our engineers. Head Pump Structure Component name and function: 1. Active front cover: move the front cover to open/close the tube installation space of the pump head. 2. Upper pressure bracket: install the working pressure block. 3. Observation window: view the pump head operating state through the transparent window. 4. Main body: mounts the motor and provides installation positions for the complete unit. 5. Support: supports the pump head core. 6. Pump head core: the working component of the squeezed tube. 7. Position of tube clamp: Indicates the current position of the tube clamp; 8. Motors: Provide power. 9. Drive and control unit: controls the motor motion. Usage Method Step 1: Move the front cover to lift the upper pressure bracket and open the tube installation space. Step 2: Place the tube into position, then move the front cover back. Reset the upper pressure bracket to complete tube installation. Dimension Drawing of Exterior and Opening(mm) Application Fields: Biopharmaceuticals, Medical Equipment, Laboratory Instruments, and Various OEM Supply NeedsTypical Applications: Biochemical Fermentation, Dentistry, Surgical Irrigation, etc.
