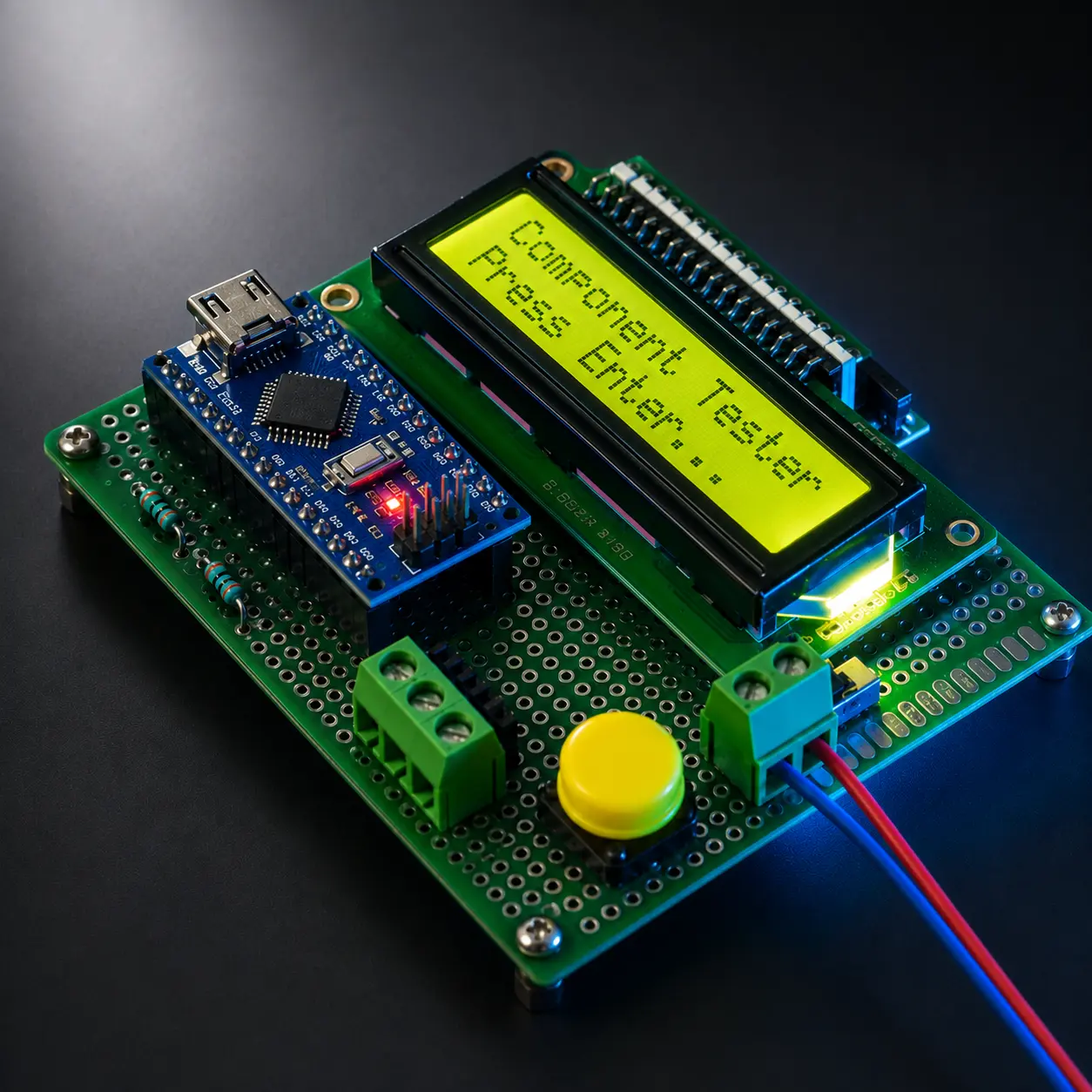

Universal Arduino Component Tester with I2C LCD Display

The Universal Arduino Component Tester is a complete, ready-to-use electronics diagnostic tool designed using an Arduino Nano microcontroller. It allows quick, automatic identification and measurement of various electronic components such as resistors, capacitors, diodes, transistors, and MOSFETs. This system features a simple one-button operation and a clear 16×2 I2C LCD hardware display, making it an essential benchtop tool for learning, component sorting, and hardware troubleshooting. ⚙️ Key Features Automatic Component Identification: Instantly detects NPN/PNP transistors, N/P-channel MOSFETs, diodes, resistors, inductors, LEDs and capacitors. One-Button Operation: Simply insert the component, press the yellow button, and read the results. 📟 On-device display: Clear readouts using a 16×2 I2C LCD. 🔌 Secure Connections: Screw terminals for easy and secure component insertion. ⚡ Compact & Sturdy Design: Neatly assembled on a high-quality prototype board. 🔄 Instant Pinout Detection: Automatically identifies base/emitter/collector or gate/drain/source pins. ⚠️ Small Value Measurement Accuracy (Important Notice) 🔻 Limited Accuracy for Very Small Components The default Arduino ATmega328P ADC and standard reference resistors are not optimized for highly precise measurements of microscopic values. 📉 Why This Happens The Arduino Nano relies on a 10-bit ADC, which limits its native resolution for extremely tiny analog signals. The internal reference resistors used in the voltage divider network have standard tolerances that affect baseline precision. Stray capacitance from the board and wiring can interfere with low-value readings. ⚡ Practical Impact Capacitors below ~25pF may not be recognized or may show fluctuating readings. Extremely low-value resistors (under 1 ohm) or very small inductors cannot be measured precisely. 🎯 Best Use Case Standard through-hole resistors, electrolytic/ceramic capacitors (above 30pF), standard diodes, and common BJTs/MOSFETs. 📦 Package Includes Arduino Nano Development Board (Pre-programmed) I2C LCD Display (16×2) Custom Assembled Perfboard/PCB Push Button Switch (Test Trigger) Screw Terminals (For component testing slots) Integrated Voltage Divider/Reference Resistors 📐 Measurement Range & Specifications Power Supply: 5V via Arduino Nano Mini-USB port Microcontroller: ATmega328P Resistor Range: ~1Ω to ~50MΩ Capacitor Range: ~25pF to ~100mF (100,000µF) Transistor Testing: BJT (NPN/PNP), MOSFET (N/P Channel), JFET Diode Testing: Forward voltage drop (Vf) measurement Display: 16×2 character LCD with I2C interface 🎯 Suitable For 🎓 Engineering & Diploma Students (Lab Work & Projects) 🧪 Electronics Hobbyists & DIY Makers 🛠️ Component Sorting and Salvaging 🔬 Educational Demonstrations of Microcontroller ADC capabilities 🏠 Basic Electronic Repair & Troubleshooting ⚠️ Limitations (Important) ❌ Crucial: You MUST discharge capacitors completely before testing. A charged capacitor will destroy the Arduino microcontroller instantly. ❌ Not suitable for in-circuit testing (components must be removed from their circuit board to be tested). ❌ Not certified for high-precision calibration lab purposes. ❌ Cannot accurately measure components with extremely low values (e.g., <25pF or <1Ω). ❌ Does not measure high-power components under actual load conditions. ❌ Device relies on USB power; no built-in battery management. ❌ Exposed PCB requires careful handling to avoid static shock or short circuits. 🔐 Safety Note Always discharge capacitors before inserting them into the test terminals. Even a small residual charge in an electrolytic capacitor can permanently damage the Arduino Nano’s internal circuitry. Recommended for users with basic electronic component knowledge. 🚀 Why Buyers Love This Component Tester 💰 Affordable Alternative to Costly Multimeters Get dedicated component identification functionality at a fraction of the price of high-end LCR meters. ⚡ Sort Components in Seconds Stop squinting at tiny color bands on resistors or micro-print on transistors—just plug it in and press the button. 🧠 Learn Practical Microcontroller Applications Not just a tool—it’s a hands-on learning system demonstrating how ADCs and microcontrollers can analyze analog electronic characteristics. 🔌 Plug & Start (Minimal Setup Required) Pre-assembled system with all essential components programmed—save hours of soldering and coding. 📊 Universal Identification System Resistors, Capacitors, Diodes, Transistors, and MOSFETs—all identified by one compact device. 💡 Perfect for Salvaging Parts Easily verify if components scavenged from old electronics are still good and identify their pinouts instantly. Important Purchase & Setup Instructions Account Creation: Before purchasing this product, make sure to create an account on this website. Payment Process: After completing your purchase, do not press the back button. The payment system will automatically redirect you to the order page. If you face any payment-related issues, inform us at info@circuitdiagrams.in. Next Steps: After purchasing, our team will contact you soon regarding the shipment procedure. Shipping Information Delivery Area: This product is exclusively available for delivery Pan India. International Shipping: Not deliverable outside of India. Shipping Time: Customers need to give atleast 2 days for preparing the shipment after purchase. Terms & Conditions (Please Read Carefully) Cancellations: After the item has been shipped, no modifications or cancellations are possible. Returns: Once the product is delivered, no returns are accepted. Warranty Policy: This product carries no standard warranty. Support: Virtual support is only available for 1 month from the date of delivery. 7-Day Replacement Policy: If the system is not working upon arrival, you must inform us within 7 days of delivery by emailing info@circuitdiagrams.in. Make sure to record a full unboxing video without edit and cut. If any editing found, immediately replace procedure will terminate. We will replace the faulty components only after a thorough technical checkup confirms the defect. (Note: Damage caused by testing charged capacitors is strictly excluded from replacement). Post-7 Days: After the initial 7-day period, no complaints, replacements, or service requests will be entertained.
