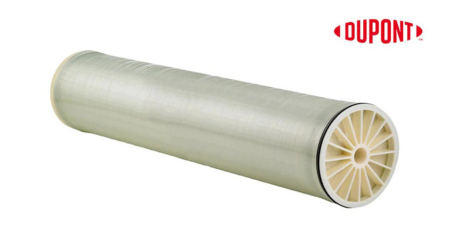

RO Membrane Dupont FilmTec Seamax-440i

FilmTec Seamaxx-440i is a seawater extra low energy reverse osmosis membrane element designed for exceptional energy savings, stable long-term performance, and reliable seawater desalination in municipal, industrial, and high-energy-cost applications. With its advanced iLEC interlocking end caps and robust polyamide thin-film composite construction, it delivers high permeate flow and superior salt rejection even in challenging conditions. 1. Key Features of FilmTec Seamaxx-440i: Very High Permeate Flow – Enables significant energy savings by reducing the required feed pressure. Low System Capital Cost – Maximizes production capacity for lower infrastructure expenses. Excellent Long-Term Durability – Ensures stable performance over years of continuous operation. iLEC Interlocking End Caps – Reduces the risk of O-ring leaks and lowers system operating costs. Optimized for ISD – Perfect for Internally Staged Designs when combined with other FilmTec seawater membranes. 2. Technical Specifications Standard Test Conditions – 600 psi (4.1 MPa) Parameter Value Active Area 440 ft² (41 m²) Feed Spacer Thickness 28 mil Permeate Flow Rate 9,050 gpd (34.2 m³/d) Stabilized Boron Rejection 81.8% Stabilized Salt Rejection 99.47% Minimum Salt Rejection 99.25% 3. Normalized to 800 psi (5.5 MPa) Conditions: Parameter Value Active Area 440 ft² (41 m²) Feed Spacer Thickness 28 mil Permeate Flow Rate 17,000 gpd (64.4 m³/d) Stabilized Boron Rejection 89% Stabilized Salt Rejection 99.70% Minimum Salt Rejection 99.58% 4. Suggested Operating Conditions: Membrane Type: Polyamide Thin-Film Composite Max Operating Temp: 113°F (45°C) Max Operating Pressure: 1,200 psi (83 bar) pH Range Continuous: 2–11 pH Range Cleaning (30 min): 1–13 Max Feed SDI: 5 Free Chlorine Tolerance: <0.1 ppm 5. Applications Seawater Desalination – For municipal drinking water production. Industrial Process Water – Reliable supply for manufacturing facilities. High-Energy-Cost Regions – Extra low energy design reduces operating costs. Low-to-Medium Feed Water Salinity – Versatile performance across varying feedwater conditions. 6. Why Choose FilmTec Seamaxx-440i from An Vi Group? When investing in seawater reverse osmosis membranes, both product quality and supplier reliability matter. An Vi Group is an experienced and trusted distributor of DuPont FilmTec membranes in Vietnam and international markets. Benefits of purchasing from An Vi Group: Official and genuine products with clear origin. Expert technical support for system design, operation, and troubleshooting. Competitive pricing and fast delivery. Professional after-sales service and long-term customer care. Contact An Vi Group: Zalo / WhatsApp: +84 964 26 7595 Sales : 0964 267 595 Email: bichvi@anvigroup.com.vn | info@anvigroup.com.vn Website: anvigroup.com.vn
