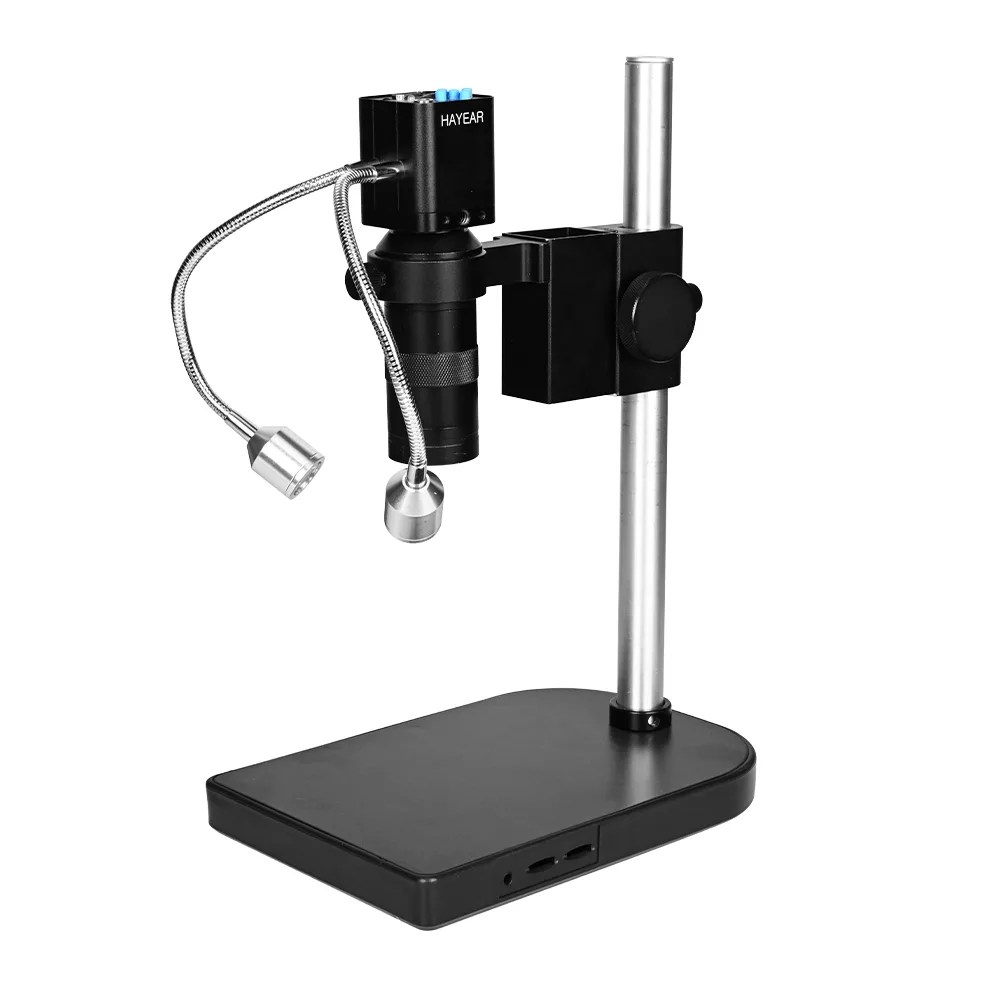

HAYEAR 16MP 2K HDMI Digital Industrial Microscope Set with 10X-150X Zoom C-Mount Lens & Dual Flexible LED Lights for PCB Soldering Repair

16MP 2K Ultra HD 1080P@60fps real-time HDMI output with 16MP ultra-clear capture for PCB micro-inspection. 10X – 150X Zoom Versatile C-mount optical zoom with 50mm-250mm long working distance for effortless soldering. Dual Gooseneck LED Flexible shadowless lighting direction with brightness control to eliminate reflection & glare. Heavy-Duty Stand Rugged metal base with smooth height adjustment column for ultimate vibration-free stability. Product Overview The HAYEAR HY-5199 16MP 2K HDMI Digital Microscope System is a professional-grade optical inspection instrument designed specifically for electronic PCB soldering, smartphone logic board repair, micro-welding, Surface Mount Technology (SMT) quality control, and precision engineering. Powered by a high-sensitivity 1/2.9″ CMOS sensor, this system outputs lag-free 1080P video directly to any standard HDMI monitor. Equipped with a 10X–150X continuous optical zoom C-mount lens, flexible dual-arm gooseneck LED spotlights, and a solid metal desktop pillar stand, it provides superior optical clarity and exceptional ergonomics with extended working clearance for soldering irons and hot air guns. Key Features & Advantages ✓ High-Definition Video & Snapshot: Captures 16MP high-resolution still images and delivers live 2K / 1080P 60fps video via HDMI connection. ✓ Extended Working Distance (50mm–250mm): Generous vertical space allows comfortable manipulation of tweezers, soldering tips, and air nozzles under the lens. ✓ Customizable On-Screen Crosslines: Features 8 built-in editable lines (color, line width, and position selectable) for precise positioning and measurement. ✓ Dual Gooseneck Shadowless Lighting: Dual flexible spotlights allow accurate light positioning to eliminate glares on metallic solder points. ✓ Advanced Image Adjustments: Full control over Auto/Manual White Balance (independent R, G, B tuning), exposure, digital zoom, contrast, sharpness, mono negative, and H/V mirroring. ✓ IR Remote Control Included: Adjust camera settings, freeze live feed, or snap photos hands-free to prevent camera shake. ✓ MicroSD Storage: Save captured photos and recorded videos directly to TF/MicroSD memory cards up to 64GB (card not included). Technical Specifications Camera Module (HAYEAR HY-5199) Optical Format / Sensor 1/2.9 inch CMOS Sensor Pixel Size 2.85 μm × 2.85 μm HDMI Video Output 1920 × 1080P Full HD / 2K Recording Static Image Resolution 16 Megapixel (via HDMI) Screen Aspect Ratio Support 4:3, 16:9 Screen Format Lens Interface Standard C / CS Mount Port External Storage Supports MicroSD Card up to 64GB (Card optional) White Balance / Exposure Auto / Manual (Independent RGB Value Control) On-Screen Crosslines 8 Lines (Color, Width & Position Adjustable) OSD Languages English, Simplified Chinese, French, Spanish, Japanese, German, etc. Remote Control Battery 1 × CR2032 Button Battery (Not included) 10X–150X C-Mount Optical Zoom Lens Magnification Power 0.1X – 1.5X Optical (Approx. 10X – 150X on Display Monitor) Zoom Ratio 1 : 10 Working Distance 50 mm – 250 mm Dimensions & Weight 42 mm (Diameter) × 99 mm (Length) | 195g Lighting & Stand Specifications Light Source Dual Flexible Gooseneck LED Illumination System Power Input AC 100-240V, 50-60Hz Automatic Switching Stand Construction Heavy-Duty Metal Rectangular Base with Adjustable Pillar Stand Package Dimensions & Weight 37 cm × 17 cm × 10 cm | 1.7 kg Target Applications • Smartphone & Tablet Motherboard Repair (iPhone / Android) • SMT / SMD Soldering Inspection & Quality Assurance • Micro-electronics, Chipset & BGA Rework • Jewelry Engraving, Watch Repair & Fine Mechanics • Industrial Inspection, Botanical & Scientific Education 📦 Package Includes: 📷 1 × HAYEAR HY-5199 Microscope Camera 🔍 1 × 10X–150X Zoom C-Mount Lens 💡 1 × Dual Gooseneck Adjustable LED Light Set 🏗️ 1 × Heavy-Duty Desktop Pillar Stand with Base 🎮 1 × IR Remote Controller 🔌 1 × Power Adapter (100V-240V) 📖 1 × User Manual
