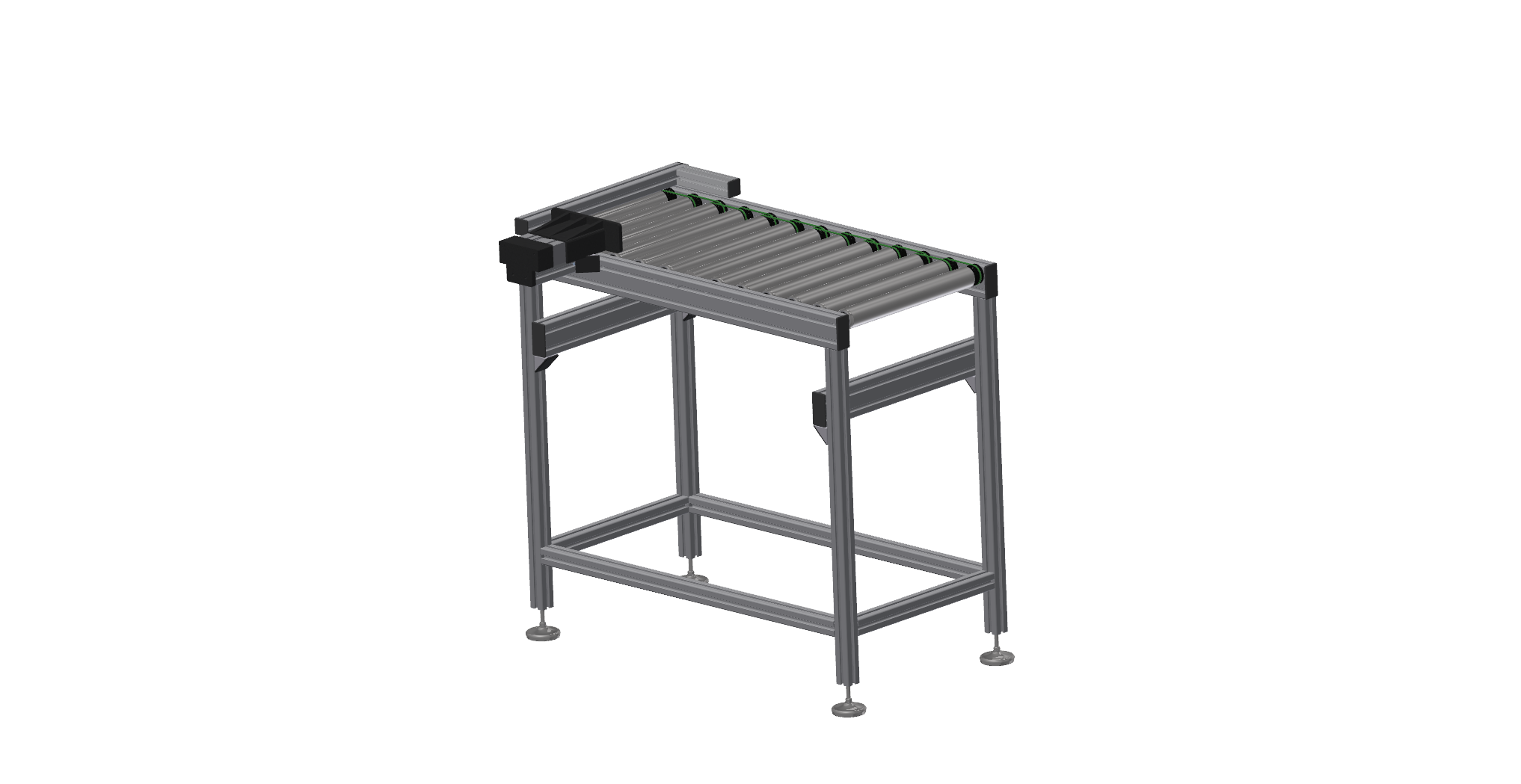

CoboTech Conveyor (Palletizing)

Conveyor for completing the palletizing process ROLLER CONVEYOR 1 pc. sensor (IFM) with reflector (detects the carton in the pick-up position). 1 pc. pusher (SMC) with 3D-printed contact protection (pushes the carton into the robot pick-up position). Cylinder stroke: 150 mm. RollerMeka 24V motor drive with control unit and external transformer (SIEMENS), 230V AC / 24V DC, 6A. Stop against aluminium profile at the front and side. DIMENSIONS Height: 960 mm (to the front stop). Width: 530 mm (rollers 400 mm). Length: 1000 mm (total length). PNEUMATICS Main shut-off valve and water separator, including valve for controlling the cylinder.
