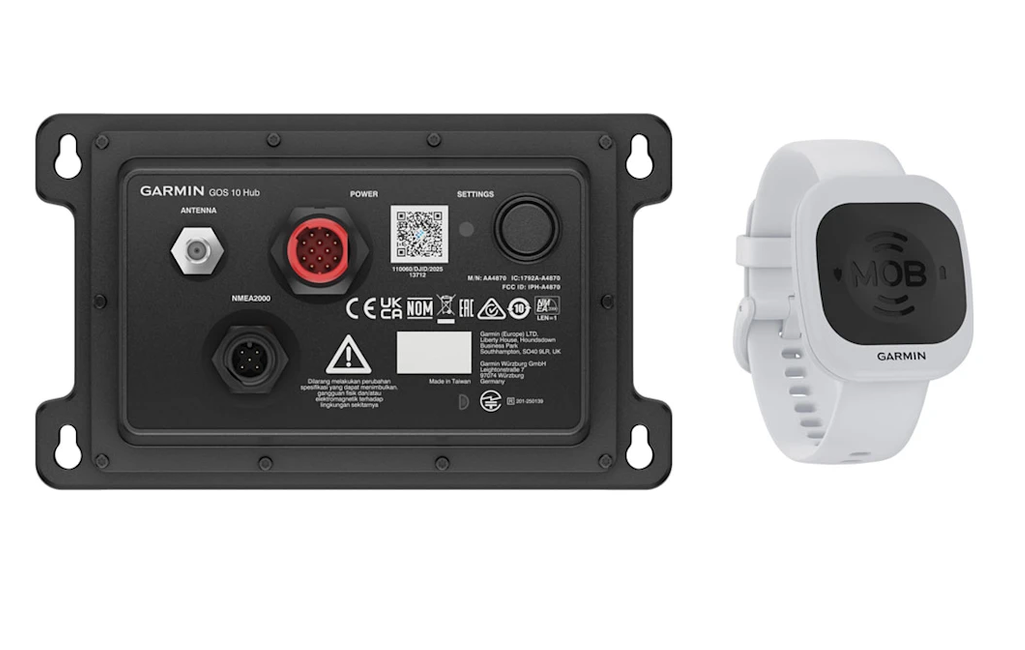

Garmin OnBoard System

The Garmin OnBoard™ System provides wireless man-overboard (MOB) monitoring while allowing freedom of movement aboard your vessel. Integrating with a compatible Garmin chartplotter, the system supports up to eight wearable tags, each designated as captain or passenger. A captain MOB event automatically triggers engine cutoff, audible alarms and a chartplotter waypoint marking where the tag lost connection; a passenger MOB event activates alarms and marks a waypoint to support recovery. Tags can be worn on the wrist or attached with a carabiner or floating keychain, with battery life exceeding a season of typical use. The system includes the GOS™ 10 hub and one wireless MOB tag, with tag status and protection settings managed through the chartplotter. Number of tags supported 8 simultaneous passengers and captains User interface Compatible Garmin chartplotter MOB alarm External beeper and MFD alert Engine cutoff yes View MOB details on MFD yes View tag status on MFD yes (battery life, signal strength, protection status) Manage tags on MFD yes (arm/disarm, captain/passenger) Wireless engine kill yes IN THE BOX: GOS™ 10 Hub 12-pin fused power and engine cut-off harness with external buzzer External antenna for wireless connection to MOB tags NMEA 2000® tee and 6 ft drop cable White wireless MOB tag CR2032 coin cell battery White 20 mm quick release band Carabiner with 20 mm quick release attachment Floating foam keychain Installation hardware Documentation
