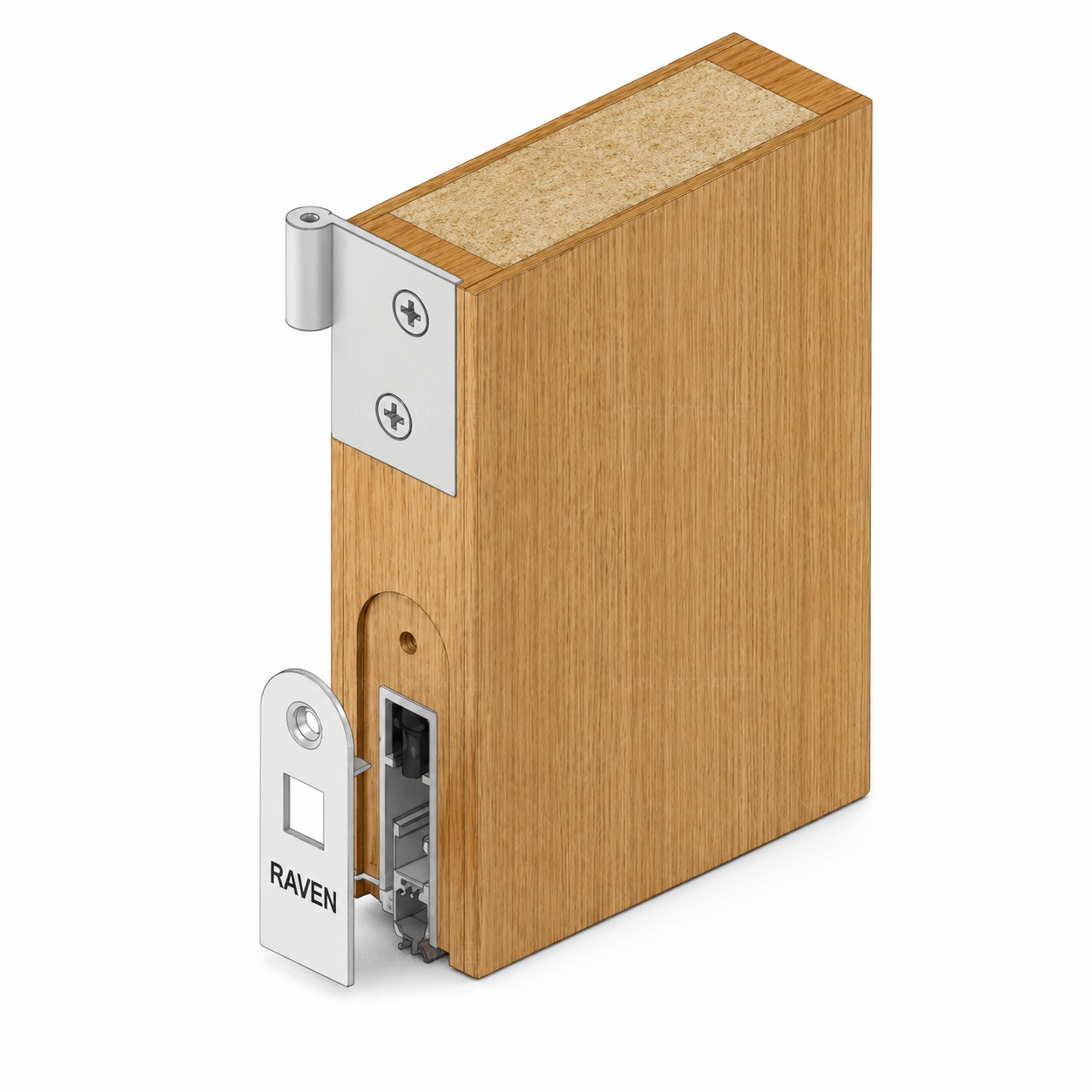

Raven RP8Si Automatic Dropdown Door Seal

Raven RP8Si is a concealed automatic door bottom seal designed for acoustic, smoke, fire, draught and dust sealing at the bottom of hinged doors. It is a professional-grade drop-down seal that is fully morticed into the bottom edge of the door, making it a clean and discreet option for high-performance door assemblies. When the door closes, the seal automatically drops to close the gap between the door leaf and the floor or threshold. When the door opens, the spring-loaded mechanism lifts the seal clear of the floor, reducing drag, wear and friction during daily use. Key Features Concealed automatic door bottom seal Spring-loaded mechanism lifts clear of the floor when the door opens Operates automatically against the door jamb through an adjustable strike Designed for acoustic, smoke and fire door applications Fully morticed installation for a clean, hidden appearance Suitable for timber and metal doors Can be used on single and double butt-hinged doors Level adjustment allows the seal to be tuned for optimum contact Available in silver, bronze and black anodised aluminium finishes Replacement seal: RP308Si GR Primary Applications Application How RP8Si Helps Acoustic Doors Helps seal the critical under-door gap, reducing sound leakage through the bottom of the door assembly. Recording Studios & AV Rooms Useful for studio doors, control rooms, home theatres and other rooms where acoustic privacy is important. Office Meeting Rooms Improves speech privacy by sealing the bottom edge of meeting room, cabin and boardroom doors. Hotels & Apartments Helps control corridor noise, room-to-room sound leakage, draughts and dust at guest room or apartment doors. Smoke & Fire Door Assemblies Designed for medium-temperature smoke and fire door applications when used as part of a tested compliant door system. Premium Interior Doors Concealed installation provides a cleaner appearance compared with surface-mounted door bottom seals. Technical Specifications Parameter Specification Product Name Raven RP8Si Automatic Door Bottom Seal Product Type Concealed automatic drop-down door bottom seal Installation Location Fully morticed into the bottom edge of single or double butt-hinged timber and metal doors Mortice Size 15 mm × 34 mm groove Gap Range 3 mm to 13 mm Operation Automatic drop-down action operated by pressure against the door jamb on the adjustable strike Seal Material Grey silicon rubber seal Replacement Seal RP308Si GR Carrier Material Anodised aluminium Available Colours Silver anodised, bronze anodised and black anodised Fixing Method Fully morticed, screw fixed concealed installation Available Lengths & Cut-Back Limits RP8Si is supplied in multiple standard lengths and can be cut back to suit the exact door width, within the manufacturer’s stated limits. Supplied Length Can Be Cut Back To 380 mm 295 mm 600 mm 380 mm 820 mm 600 mm 920 mm 820 mm 1070 mm 920 mm 1220 mm 1070 mm 1500 mm 1220 mm Fire, Smoke & Acoustic Performance Fire rating: Up to FD240 / up to FRL & FRR -/240/30, depending on the complete tested door assembly. Gasket flammability: Flammability index 1 when tested to AS1530.2. Smoke performance: References include NCC S12C4, AS1530.7 and BS EN 1634-3. Smoke leakage: Meets smoke leakage rate references specified in AS6905 and EN 13501-2 “Sa”, “S200”. Acoustic use: Designed for acoustic sealing when used with a suitable acoustic door, perimeter seals and threshold detail. How It Works The RP8Si is installed inside a routed groove at the bottom of the door leaf. When the door closes, the adjustable strike activates the mechanism and lowers the seal against the floor or threshold. When the door opens, the seal retracts automatically so that it does not scrape across the floor. This makes it suitable for doors where a permanent bottom sweep would create drag, interfere with movement, or wear quickly. The automatic action helps maintain sealing performance while keeping the threshold area cleaner and easier to use. Recommended Use Acoustic doors and sound-rated doors Fire and smoke-rated door assemblies Recording studio and home theatre doors Office meeting rooms and conference rooms Hotel guest room doors Apartment entrance and bedroom doors Commercial timber or metal doors requiring a concealed bottom seal Installation Notes RP8Si requires a morticed groove and is best suited to new doors or doors that can be machined accurately. The door must be suitable for routing a 15 mm × 34 mm groove without compromising strength or certification. For fire, smoke or acoustic-rated doors, the full door set should be assessed as a complete system. Use with appropriate perimeter seals and threshold details for best acoustic and smoke control. Final adjustment should ensure firm seal contact without excessive closing force. Important System Note Door soundproofing and smoke sealing depend on the complete door assembly. A bottom seal alone cannot make a standard door soundproof or fire-rated. For best results, combine RP8Si with the correct door core, frame seal, meeting stile seal, threshold detail, hinges, hardware and professional installation.
