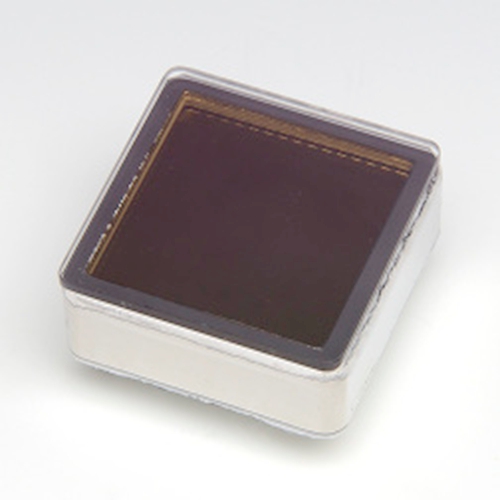

hamamatsu Microchannel plate photomultiplier tube R10754-07-M16

hamamatsu Microchannel plate photomultiplier tube R10754-07-M16 Download Datasheet: hamamatsu Microchannel plate photomultiplier tube R10754-07-M16 27.6 mm square shape, 16 matrix multianode, MCP-PMT, Small dead space, Fast time response, For high magnetic field, Multialkali photocathode (Effective area :23 mm x 23 mm dia. / Spectral response : 160 nm to 850 nm) Specifications Type MCP-PMT Features Fast response time Tube Size 27.6 mm x 27.6 mm Photocathode Area Shape Square Photocathode Area Size 23 mm x 23 mm Wavelength (Short) 160 nm Wavelength (Long) 850 nm Wavelength (Peak) 380 nm Photocathode Material Multialkali Window Material Quartz Dynode Structure MCP Dynode Stages 2 [Max. Rating] Anode to Cathode Voltage 2700 V [Max. Rating] Average Anode Current 2 mA [Cathode] Luminous Sensitivity Min. 80 μA/lm [Cathode] Luminous Sensitivity Typ. 110 μA/lm [Cathode] Blue Sensitivity Index (CS 5-58) Typ. 7.5 [Anode] Luminous Sensitivity Min. 22 A/lm [Anode] Luminous Sensitivity Typ. 110 A/lm [Anode] Gain Typ. 1.0 x 106 [Anode] Dark Current (after 30min.) Typ. 5 nA [Anode] Dark Current (after 30min.) Max. 30 nA [Time Response] Rise Time Typ. 0.195 ns [Time Response] Transit Time Typ. 0.31 ns [Time Response] Transit Time Spread Typ. 0.075 ns
