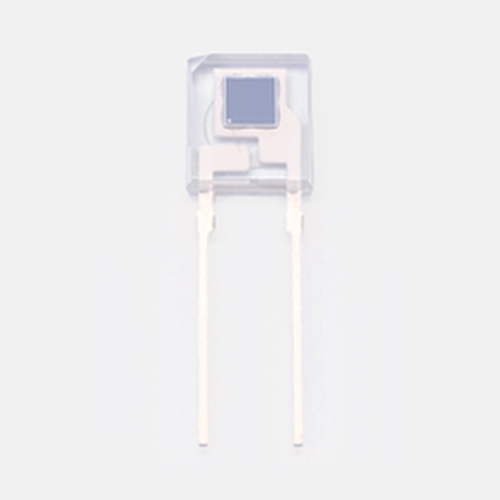

hamamatsu Si PIN photodiode S2506-02 Plastic SIP (single in-line package)

hamamatsu Si PIN photodiode S2506-02 Plastic SIP (single in-line package) Download Datasheet: hamamatsu Si PIN photodiode S2506-02 Plastic SIP (single in-line package) S2506-02 is a Si PIN photodiode with large active areas, molded into a clear plastic SIP for detecting visible to near infrared range. Features – Visible to near infrared range – Plastic package: 7 × 7.8 mm – Photosensitive area size: 2.77 × 2.77 mm Specifications Photosensitive area 2.77 × 2.77 mm Package Plastic Package category — Cooling Non-cooled Reverse voltage (max.) 20 V Spectral response range 320 to 1100 nm Peak sensitivity wavelength (typ.) 960 nm Photosensitivity (typ.) 0.48 A/W Dark current (max.) 10000 pA Cutoff frequency (typ.) 25 MHz Terminal capacitance (typ.) 15 pF Noise equivalent power (typ.) 1.0×10-14 W/Hz1/2 Measurement condition Ta=25 ℃, Typ., Photosensitivity: λ=780 nm, Dark current: VR=12 V, Cutoff frequency: VR=12 V, Terminal capacitance: VR=12 V, f=1 MHz, Noise equivalent power: VR=12 V, unless otherwise noted
