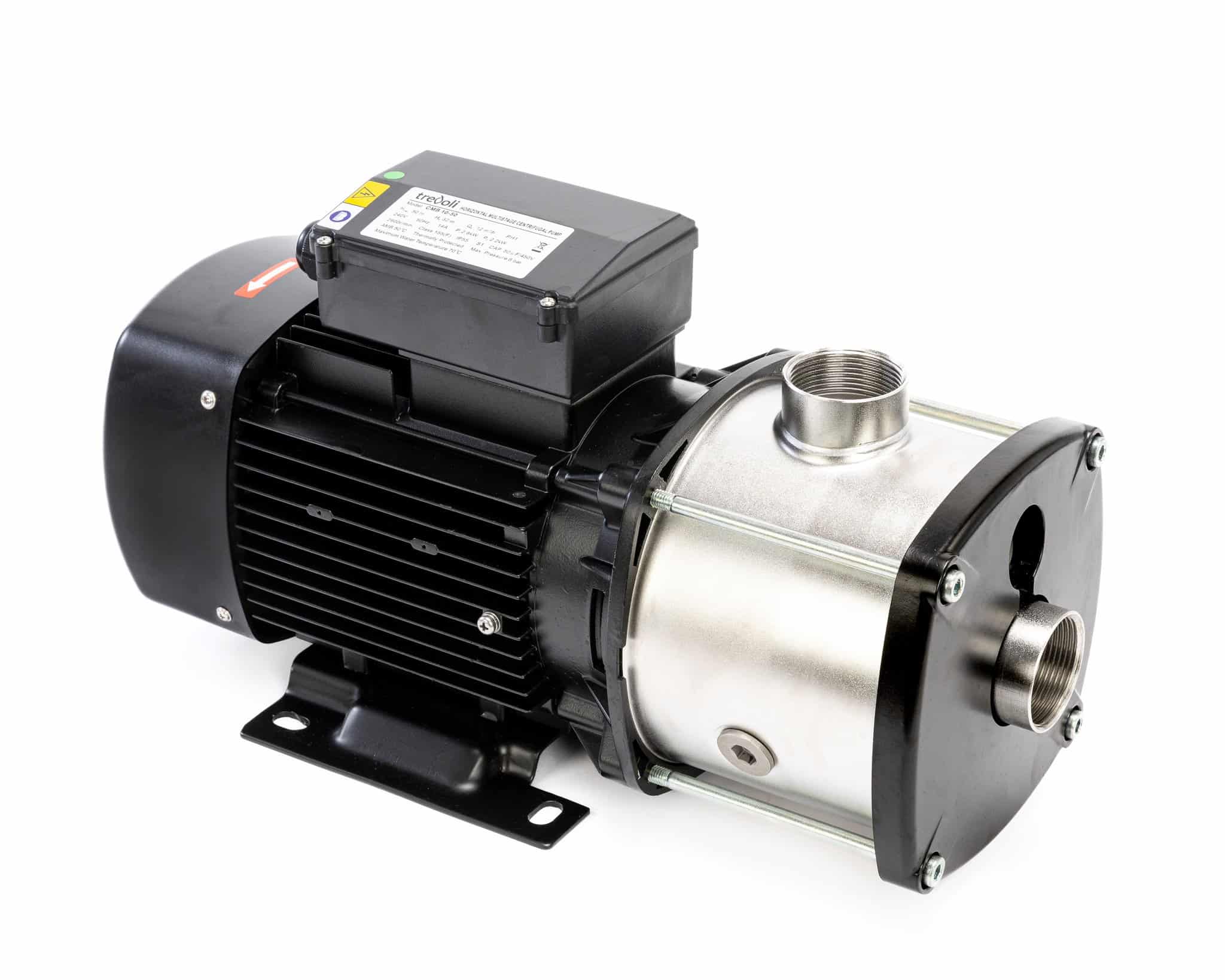

Trevoli CMB10-50

The Trevoli CMB10-50 is ideal for domestic water supply, providing mains pressure for a large single or multi-level home (plus). Able to support up to 22 taps running at one time. Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow). Starts automatically when the tap is turned on and stops automatically when the last tap is turned off when fitted with a pump controller, operating constantly from low flow to full flow. Specifications: Power -2200W – 3.0 Horsepower Amps-14 Single phase fitted with 15 amp plug. Max Flow rate: 260 LPM Max Pressure: 66 psi Max discharge head: 47 metres Max suction 1.5m Inlet/Outlet: 1.5 inch BSP (same as 40mm) Built in thermal overload protection Insulation class F IP55 Protection Rated for Continuous duty Liquid temperature range: -20 – 70 deg C Dimensions: Length 449mm x Height: 217mm x Width: 199mm Applications: Domestic water supply for large / very large homes General water transfer systems Industrial/commercial applications Features: Thermal protection IP 55 protection Corrosion resistant stainless steel construction Stainless steel pump housing Stainless steel motor shaft Stainless steel impeller and intermediate chambers Built in thermal overload protection Very quiet operation 2 Year Warranty
