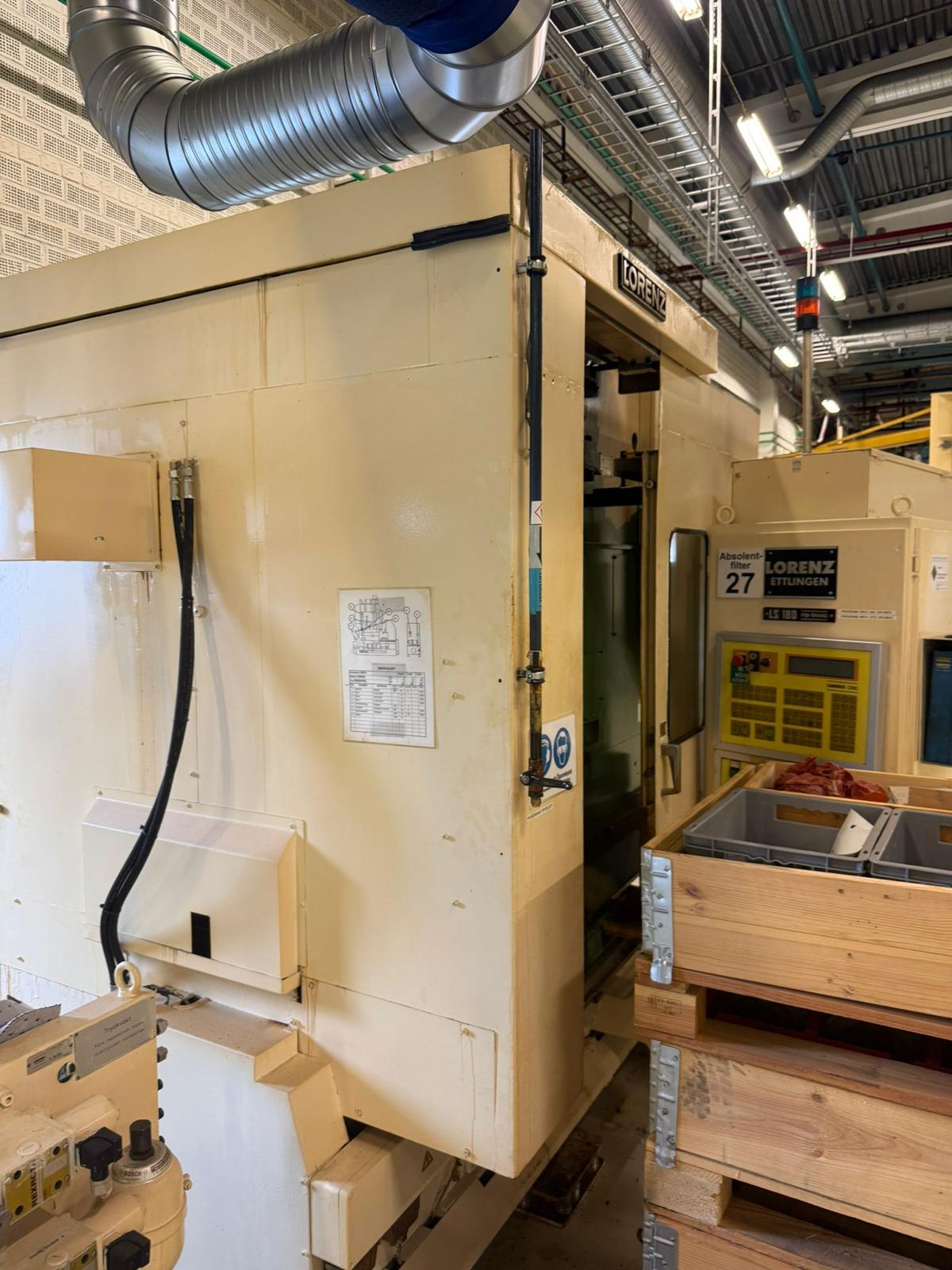

Lorenz LS 180 CNC Gear Shaping Machine

Lorenz LS 180 CNC Gear Shaping Machine CNC Gear Shaping Machine Specification: Max. Pitch Circle Diam., External Gear: 177.8 mm (7″) Max. Workpiece Diam., Internal Gear: 279.4 mm (11″) Max. Tooth Width: 50.8 mm (2″) Max. Module: 5 DP Max. Travel: X + Direction: 175 mm (6.89″) X – Direction: 30 mm (1.18″) Z – Direction: 149.9 mm (5.9″) Programmable Number of Teeth: 5-200 Connected Load: 44 kVA Speed Range, Main Motor: 650-3250/min Stroke Rate Range: 250-1250/min Output Main Motor: 6 kW@1000/min Max. Motor RPM: Cutter, C Axis: 2000/min. Workpiece, D Axis: 2000/min. Radial, X Axis: 3000/min. Axial, Z Axis: 3000/min. Rotary Motion: Cutter at diam.100, C Axis: 241.3-4826 mm/min (9.5″-190″/min) Workpiece at diam. 100, D Axis: 4.8-9652 mm/min (.189″-380″/mn) Radial Motion, X Axis: 0.762-1800 mm/min (.03-70.87″/mn) Axial Motion, Z Axis: 0.762-1800 mm/min (.03-70.87″/mn) Machine Weight: 6,804 kg (15,000 LBS) Contact Us Visit AK Machine Tools
