Engine Oil Seal Kit H1/A/B/C/D/E (22 pcs)

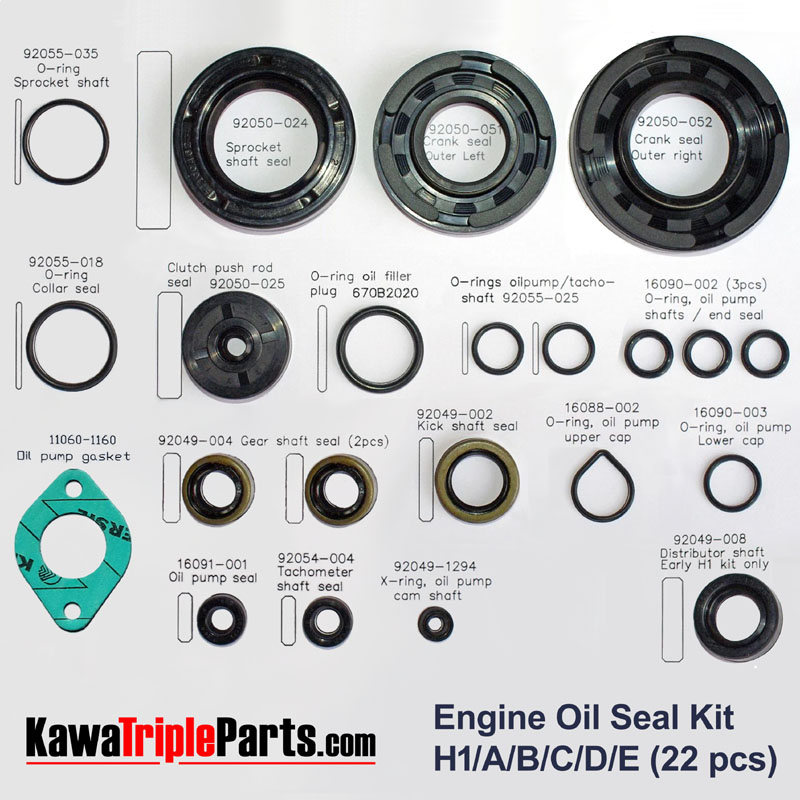

H1, H1A, H1B, H1C, H1D & H1E engine oil seal kit, including oil pump rebuild set. For H1F /KH500 with Kawasaki ball bearing release, use the later kit with 92050-070 Clutch Push Rod Sea seal CLICK HERE The kit includes:- 92049-008 – Distributor Shaft Seal 92050-024 – Sprocket Shaft Seal 92055-035 – Sprocket Shaft 0-Ring 92050-051 – Crankshaft Outer Left 92050-052 – Crankshaft Outer Right 92049-004 – Gear Shaft Seal x2 92054-004 – Tachometer Shaft Seal 92050-025 – Clutch Push Rod Seal (if using a Kawasaki ball bearing release, it must be spaced out – see below) 92055-018 – Crankshaft Collar O-Ring 670B2020 – 0-Ring, Oil Filler Plug 92049-002 – Kick Shaft Seal 92055-025 – 0-Ring x2, Oil Pump/Tachoshaft 16091-001 – Oil Pump Seal 16090-002 – 0-Rings x3, Oil Pump Shaft 16090-003 – 0-Ring, Oil Pump, Lower Cap 16088-002 – Seal, Oil Pump, Upper Cap 92049-1294 – X-Ring Oil Pump Cam Shaft 11060-1160/16094-002 – Oil Pump Gasket NOTE: The clutch pushrod seal will not work with the Kawasaki ball bearing release without modification (a spacer or washers must be fitted to pack it 3mm). See here… BALL BEARING MODIFICATION VIDEO
