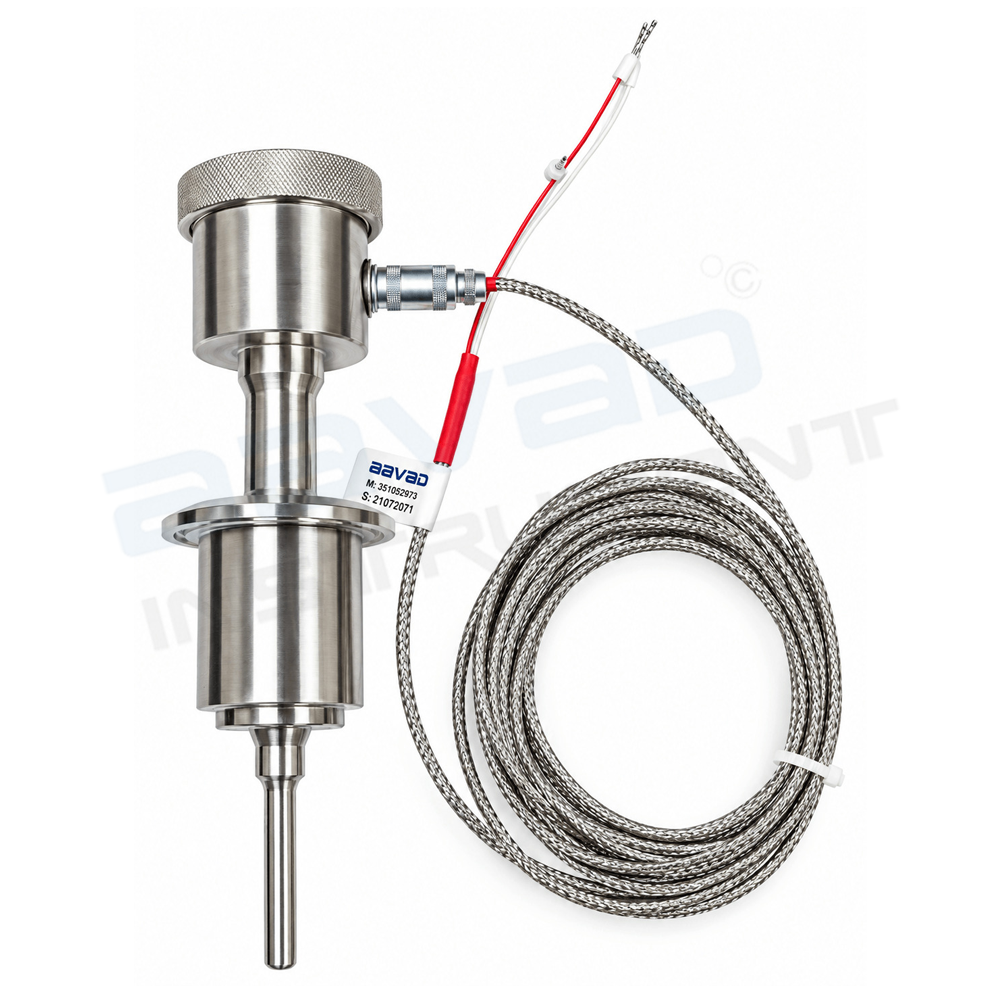

RTD Sensor Tri-Clover Type With Lumo Connector

Parameter Specification Type PT100 / PT1000 Make Aavad Model APES-LUMO Accuracy Class A Configuration Simplex Total no. of wires 3 Wire Temperature range -50 To 250 Degrees C Sheath Material SS 316 Insulation Compacted MgO Insulation Cable length 2 Meter Cable insulation SS Braided Flexible Cable Probe diameter 6 mm Probe length 42 mm Tri-Clover fitting 50 mm Head SS316 Connector 4 Pin Lumo Connector With Female Connection
