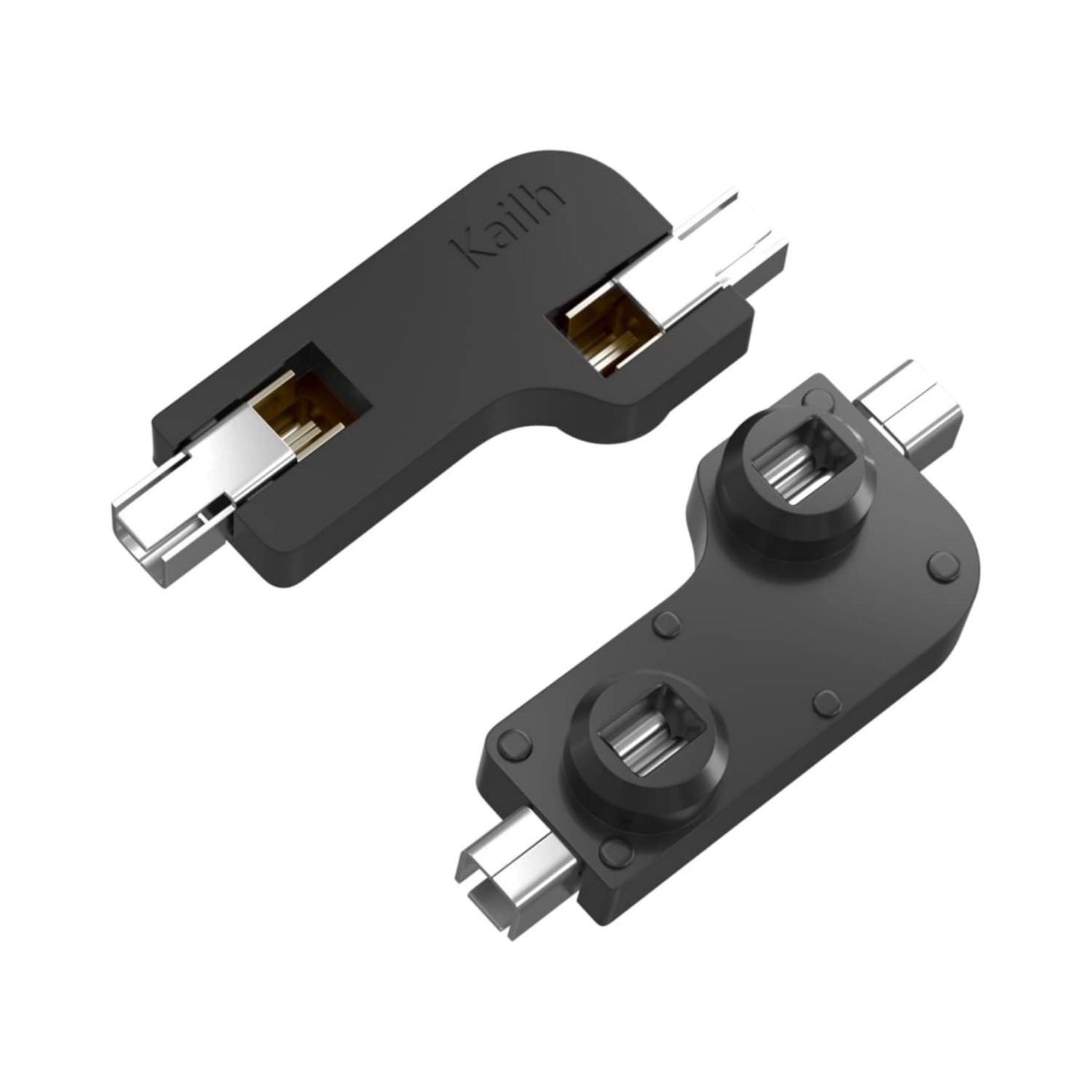

Kailh MX Hotswap Sockets

Technical Specifications Part Number: CPG151101S11-16 Compatibility: Designed for MX-compatible mechanical keyboard PCBs (supporting both ANSI and ISO layouts). Electrical Rating: 12V AC/DC maximum (2V DC minimum); 10mA AC/DC maximum (10µA DC minimum). Contact Resistance: 100mΩ maximum. Insulation Resistance: 100MΩ minimum at 500V DC. Dielectric Withstanding Voltage: 100V AC (50-60Hz) for 1 minute. Mechanical Durability: Rated for up to 5,000 insertion and removal cycles. Insertion & Removal Force: Insertion force of 3.0kg maximum; removal force of 0.2kg minimum. Operating Temperature Range: -20°C to +70°C. Environmental & Solder Resistance: Cold resistance at -20°C±2°C for 48 hours; heat resistance at 70°C±2°C for 48 hours; welding heat resistance up to 260°C±5°C for 96 hours. FAQ Q: Are these sockets compatible with standard MX switches? A: Yes, these sockets are engineered specifically for MX-style switches and standard hot-swappable PCB footprints. Q: What is the recommended soldering temperature for installation? A: The components are rated to withstand welding heat up to 260°C±5°C, making them suitable for standard PCB surface-mount reflow processes. Q: Does PandaKB ship these components internationally? A: Yes. All keyboard components, including Kailh hotswap sockets, conform to international shipping standards and are available for global delivery.
