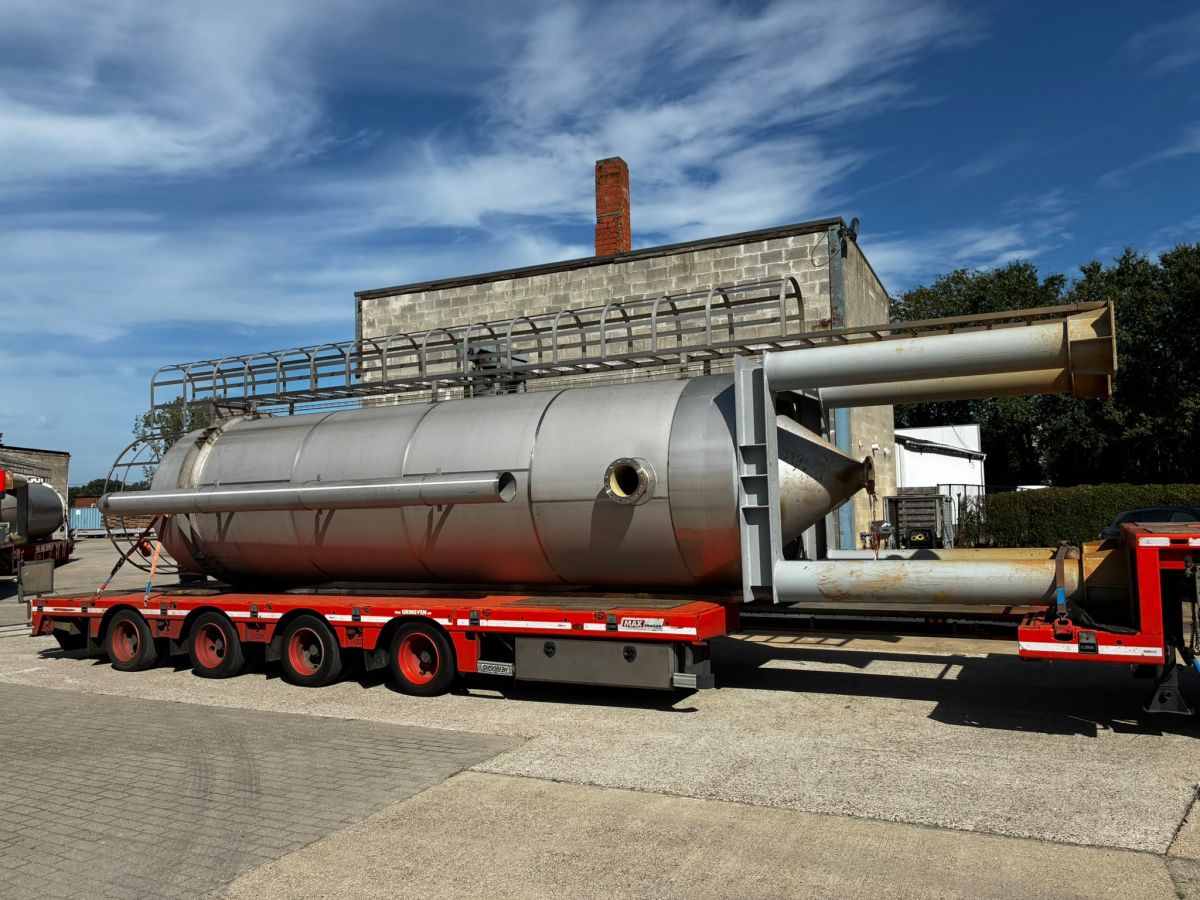

20000 liter tank i Rostfritt 304

Article type: second-hand storage tank Additional information: Previous product was ferrosorp. Some residue from the previous product is still present in the tanks. The tanks can be cleaned before delivery. Volumetric volume (L): 20.000 L Pressure in tank: ATM – atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: single-skin Heat exchanger: no Insulation: no Mobile tank: no Top type: dished Shape of tank: cylindrical Bottom type: strong conical Total discharge: yes Fixation points: 4 non adjustable feet Manway(s): RVS 304 Gasket manway(s): unknown Fixation point(s): painted steel Suitable for food industry: no Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Number of manways: 1 Position of manway: headside Height manhole 1 (mm): 510 mm Tank outlet: inside Ø 212 mm Outlet of tank: DN200 Agitator: no Top: 4 mm Cylinder: 4 mm Bottom: 4 mm Internal diameter tank: 1.992 mm Distance from outlet to ground: 1.850 mm Outer diameter tank: 2.000 mm Cylinder height: 6.200 mm Feet height: 2.710 mm Total height of tank: 11.000 mm Total outer width: 2.700 mm Total outer length: 2.950 mm Empty weight tank: 4.000
