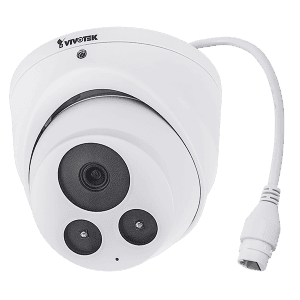

IT9360-H (3.6 mm)

IT9360-H (3.6 mm) 2MP Outdoor Turret Network Camera WDR Pro for Unparalleled Visibility Built-in IR Illuminators, Effective up to 30 Meters Cyber Protection via Trend Micro IoT Security Weather-proof IP66 & Vandal-proof IK10 Housing MicroSD/SDHC/SDXC Card for On-board Storage Specifications System Information Model IT9360-H (3.6 mm) CPU Multimedia SoC (System-on-Chip) Flash 128 MB RAM 256 MB Camera Features Image Sensor 1/2.9″ Progressive CMOS Max. Resolution 1920×1080 (2MP) Lens Type Fixed-focal Focal Length f = 3.6 mm Aperture F2.0 Auto-iris Fixed Iris Field of View 81.0° (Horizontal) 44.0° (Vertical) 95.0° (Diagonal) Shutter Time 1/5 sec. to 1/32,000 sec. WDR Technology WDR Pro Day/Night Yes Removable IR-cut Filter Yes IR Illuminators Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2 Minimum Illumination 0.065 lux @ F2.0 (Color) <0.005 lux @ F2.0 (B/W) 0 lux with IR illumination on Pan Range >360° Tilt Range 70° Rotation Range 360° Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) On-board Storage Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS) Video Video Compression H.265, H.264, MJPEG Maximum Frame Rate 30 fps @ 1920×1080 Maximum Streams 3 video streams (Up to 8 configurable profiles) S/N Ratio IT9360-H(2.8mm): 68 dB IT9360-H(3.6mm): 68 dB Dynamic Range 120 dB Video Streaming Adjustable resolution, quality and constant bit rate control, Smart Stream III Image Settings General settings video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings Illuminators illuminators, anti-overexposure Image settings white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR Exposure BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR Privacy mask Scheduled profile settings Audio Audio Capability One-way Audio Compression G.711, G.726 Audio Interface Built-in microphone ffective Range 5 meters Network Users Live viewing for up to 10 clients Security Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management Protocols 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP Interface 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. ONVIF Profile G, S, T supported, specification available at www.onvif.org Solution Integration Video Motion Detection Motion Detection (Five-window video motion detection) Alarm and Event Event Triggers Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot Events Action Event notification via email, HTTP, FTP, NAS server, SD card, push notification File upload via email, HTTP, FTP, NAS server, SD card General Connectors RJ-45 cable connector for 10/100 Mbps Network/PoE connection LED Indicator – * Hidden system power and status indicator Power Input IEEE 802.3af PoE Class 2 Power Consumption Max. 6 W/3.31 W (IR on/off) Dimensions ø 105 x 82.5 mm Weight 475 g Safety Certifications EMC CE (EN55032 Class B, EN55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR32 Class B), VCCI (VCCI-CISPR 32 Class B) Safety UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471) Environment IK10 (IEC 62262), IP66 (IEC 60529) IA BIS (IS 13252) * IK10(Metal Housing) Operating Temperature Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F) Working Temperature: -20°C ~ 60°C (-4°F ~ 140°F) Humidity 90% System Requirements Operating System Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) Web Browser Chrome 58.0 or above Internet Explorer 10/11 Other Players VLC: 1.1.11 or above Included Accessories Packing Contents Quick installation guide, alignment sticker, screw pack, cable gland Specifications Downloads Datasheet Link Top of page
