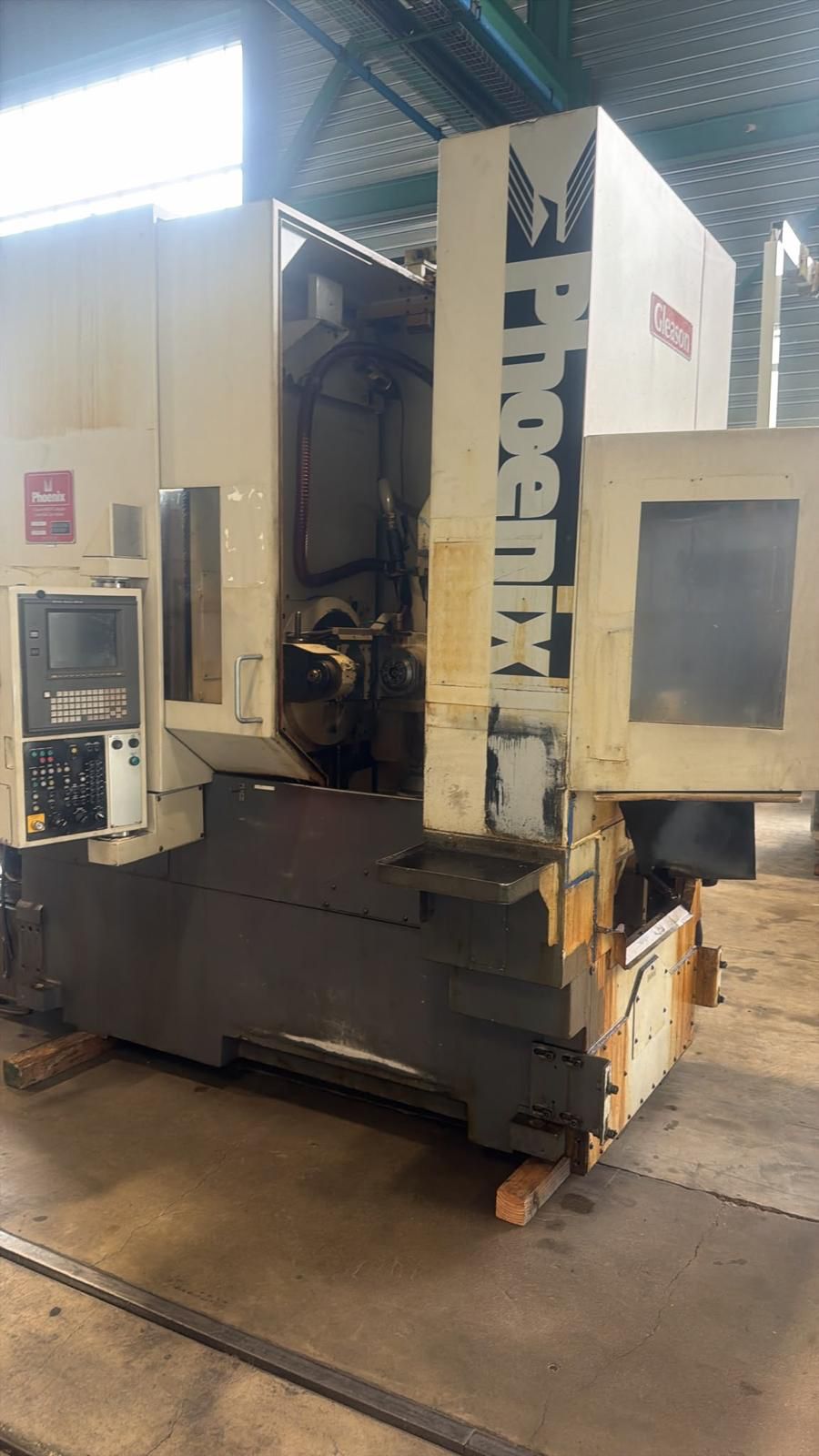

Gleason Phoenix GH 400 CNC Gear Hobber

Gleason Phoenix GH 400 CNC Gear Hobber CNC Gear Hobber Specification: Max. Workpiece Diam., Carousel Loading: 400 mm (15.75″) Max. Workpiece Diam., Manual Loading: 450 mm (17.72″) Max. Face Width: 525 mm (20.67″) Max. Diametral Pitch: 2.5 DP Max. Module: 10 Max. Part Weight, Carousel: 56 kg (125 LBS) Max. Hob Spindle Torque: 280 Nm (2,500 in-lbs) Minimum Number of Teeth: 2 Center Distance, Hob to Workpiece: Minimum: 35 mm (1.38″) Maximum: 310 mm (12.20″) Height, Work Spindle to Hob Center: Minimum: 75 mm (2.95″) Maximum: 235 mm (9.25″) Axial Hob Slide Travel: 275 mm (10.82″) Radial Slide Travel: 275 mm (10.83″) Work Spindle to Tailstock Face: Minimum: 350 mm (13.78″) Maximum: 380 mm (14.96″) Work Spindle Mounting Diameter: 150-320 mm (5.91-12.60″) Draw Rod Interface Hole Diam.: 152 mm (5.98″) Work Spindle Bolt Circles: 150 & 190 mm (5.91 & 7.48″) Max. Hydraulic Chucking Force: 78.3 kN (17,600 LBS) Max. Hob Diameter: 160 mm (6.25″) Hob Arbor Diameter: 32 / 40 mm (1.25 / 1.50″) Hob Spindle Taper: ISO 40 Hob Spindle Speed, Standard: 150-1000/min Hob Spindle Speed, Optional: 150-1500/min Low-Speed Range: 1-75/min Optional Low-Speed Range: 15-150/min Worktable Speed: 5000 mm/min (197″/min) Radial Traverse Rate: 5000 mm/min (197″/min) Axial Traverse Rate: 5000 mm/min (197″/min) Hob Drive Motor: 15 kW (20 HP) Work Spindle Motor: 7.5 kW (10 HP) Hydraulic Unit Motor: 2.2 kW (3 HP) Coolant Motor: 8 kW (11 HP) Mist Collector Motor: 0.6 kW (0.75 HP) CNC Control: FANUC Number of CNC Axes: 6 Part Program Storage: 100 Parts Work Changer: 16-Station Pallet / Carousel Machine Weight: 11,884 kg (26,200 LBS) Machine Weight with Carousel: 12,128 kg (26,600 LBS) Contact Us Visit AK Machine Tools
