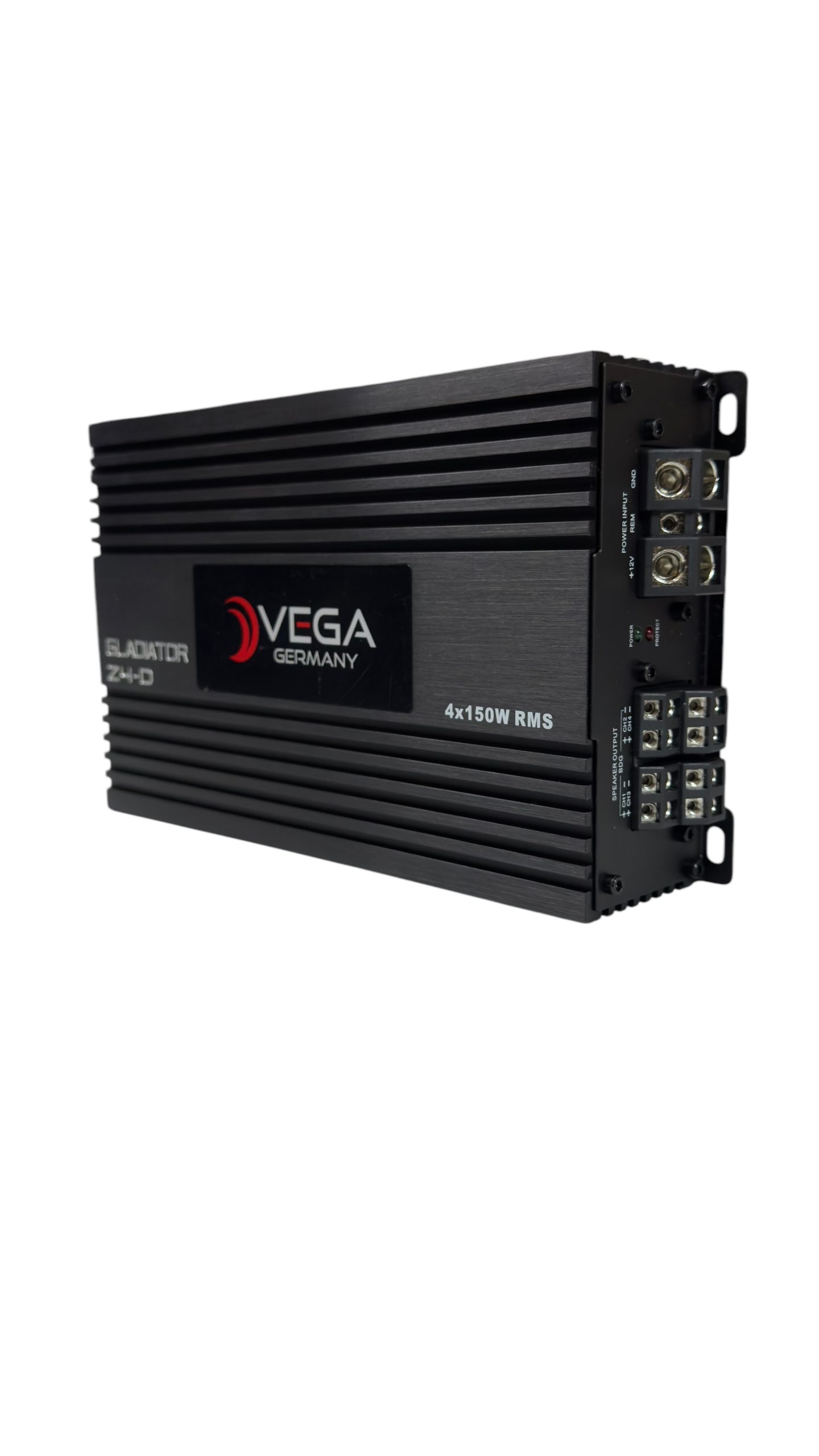

Z4-D GLADIATOR

Technical Data Power RMS (≤ 1% THD+N) – 4 x 150 Watts @ 4 Ohms – 4 x 200 Watts @ 2 Ohms – 2 x 400 Watts @ 4 Ohms bridged Amplifier technology Class D Inputs 4 x RCA / Cinch 4 x Highlevel speaker input 1 x Remote In Input sensitivity RCA / Cinch: 0.5 – 6 Volts Highlevel: 1.3 – 13 Volts Input impedance RCA / Cinch: 20 kOhms Highlevel: 9 – 33 Ohms Outputs 4 x Speaker output Frequency response 20 Hz – 20,000 Hz Highpass 15 Hz – 4,000 Hz Lowpass 40 Hz – 4,000 Hz (CH3-CH4) Bandpass 15 Hz – 4,000 Hz (CH3-CH4) Signal-to-noise ratio (A-weighted) >90 dB Distortion (THD) 0.20 % Damping factor 100 Operating voltage 10 – 16 Volts (5 sec. down to 6 Volts) Power fuse 30A x 2 (Built-in) Dimensions (H x W x D) 2.05 x 9.29 x 5.31″ / 52 x 236 x 135 mm
