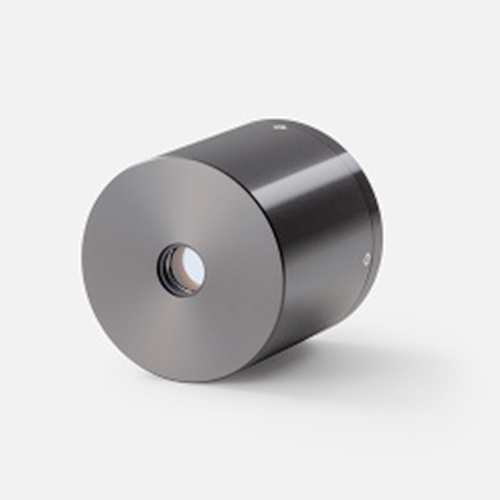

hamamatsu Microchannel plate photomultiplier tube R5916U-50

hamamatsu Microchannel plate photomultiplier tube R5916U-50 Download Datasheet: hamamatsu Microchannel plate photomultiplier tube R5916U-50 55 mm dia., MCP-PMT, Multialkali photocathode (Effective area :10 mm dia./Spectral response : 160 nm to 850 nm) Specifications Type MCP-PMT Tube Size Dia.55 mm Photocathode Area Shape Round Photocathode Area Size Dia.10 mm Wavelength (Short) 160 nm Wavelength (Long) 850 nm Wavelength (Peak) 430 nm Spectral Response Curve Code 500S Photocathode Material Multialkali Window Material Quartz Dynode Structure MCP Dynode Stages 2 [Max. Rating] Anode to Cathode Voltage -3400 V [Max. Rating] Average Anode Current 0.0001 mA Anode to Cathode Supply Voltage -3000 V [Cathode] Luminous Sensitivity Min. 100 μA/lm [Cathode] Luminous Sensitivity Typ. 150 μA/lm [Cathode] Radiant Sensitivity Typ. 52 mA/W [Anode] Luminous Sensitivity Typ. 45 A/lm [Anode] Gain Typ. 3.0 x 105 [Anode] Dark Current (after 30min.) Max. 10 nA [Time Response] Rise Time Typ. 0.18 ns [Time Response] Transit Time Typ. 1 ns [Time Response] Transit Time Spread Typ. 0.1 ns
