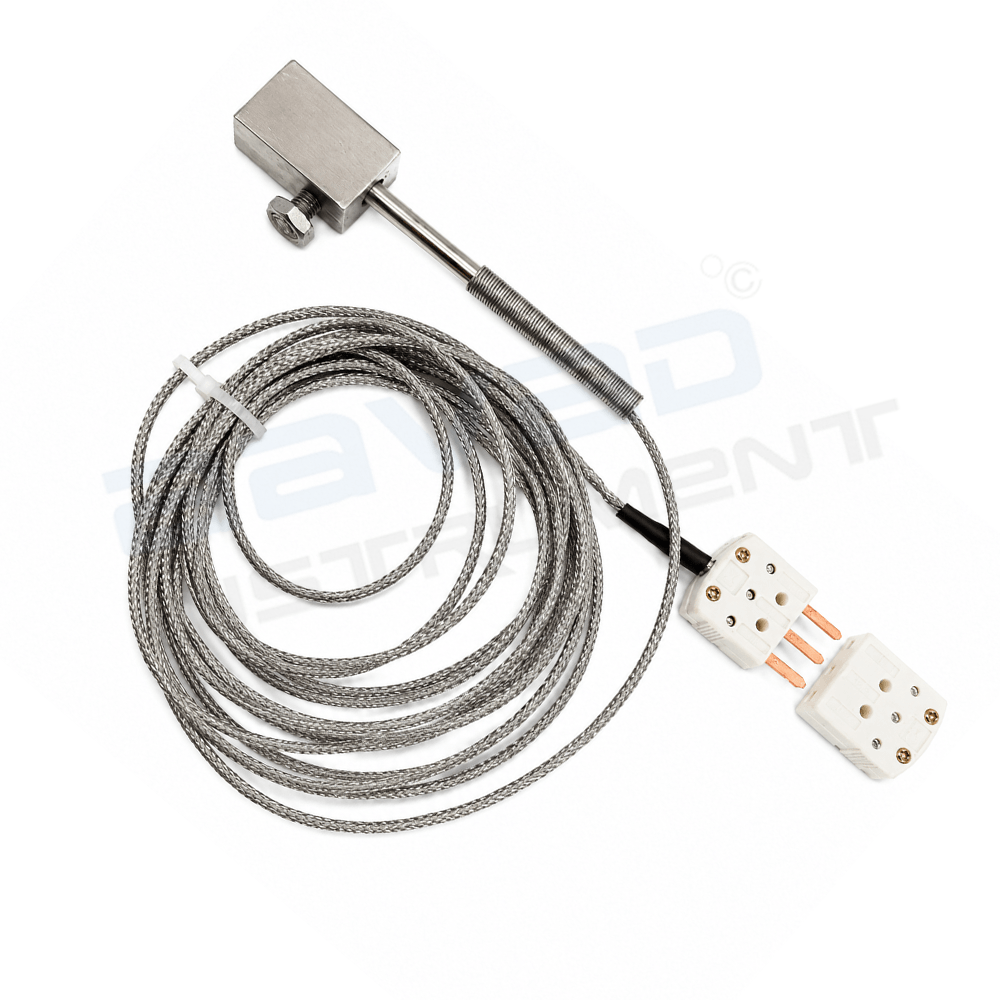

Weld Pad Surface Temperature Sensor

Parameter Specification Type PT-100 / PT-1000 Make Aavad Model APES-6×50 Configuration Simplex Total no. of wires 3-Wire Accuracy Class A / Class B Temperature range -50 To 400 Degrees C Material of construction SS 316 Insulation Compacted MgO Insulation Cable length 5 Meter Cable insulation Teflon/Teflon/SS Connector 3-Pin flat mini connector Weld pad size (L × W × H) 30 × 30 × 20 mm Od 6 mm Length below spring 50 mm
