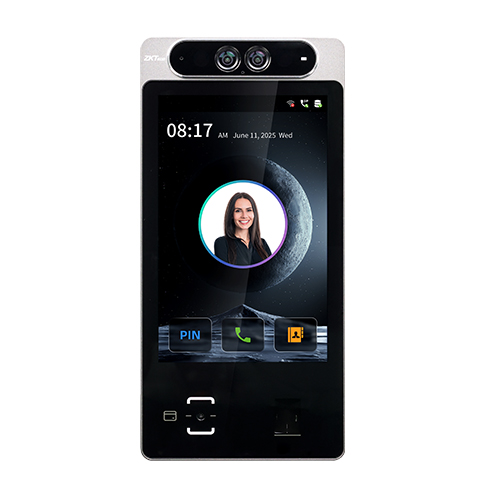

FaceTima 8

Mendukung berbagai metode autentikasi biometrik, termasuk autentikasi wajah, telapak tangan (segera hadir), sidik jari, QR code (dinamis dan statis), serta verifikasi RFID. Kapasitas template yang lebih besar: hingga 100.000 pengguna, 100.000 template kartu, 30.000 template sidik jari, 100.000 template wajah, dan 20.000 template telapak tangan (segera hadir). Dilengkapi algoritma anti-spoofing yang melindungi dari serangan menggunakan foto cetak (laser, berwarna, maupun hitam-putih) serta serangan berbasis video. Modul kartu dual-frequency (125 kHz & 13,56 MHz) memastikan kompatibilitas dengan berbagai jenis kartu. Perlindungan tahan air dan debu berstandar IP66 serta ketahanan terhadap vandalisme IK07. Dirancang untuk beroperasi secara andal pada rentang suhu −30°C hingga 60°C. Dilengkapi catu daya PoE bawaan dan jaringan nirkabel dual-frequency, serta mendukung modul 4G (opsional) untuk instalasi yang lebih fleksibel. Mendukung antarmuka Wiegand dan RS-485 untuk penambahan perangkat pembaca eksternal. Mendukung enkripsi seluruh kredensial biometrik dan transfer informasi pribadi dengan standar AES-256. Dilengkapi Android LCDP untuk integrasi dengan aplikasi pihak ketiga dan kompatibel dengan Android 14.0. Mendukung fungsi video door phone beresolusi HD melalui protokol SIP (Versi 2.0). Dilengkapi kamera binokular wide-angle 120° untuk jangkauan pandang yang lebih luas, serta algoritma peredam kebisingan cerdas untuk komunikasi suara yang lebih jelas. Mendukung fitur AI Assistant dengan pemrosesan langsung pada perangkat serta kecerdasan berbasis cloud (segera hadir). Spesifikasi Specification Details System Operating System Android 14.0 CPU 1.8 GHz quad-core processor Storage 4GB RAM, 64GB ROM SDK Android LCDP, AC PUSH SDK Basic Communication TCP/IP, 4G (optional), SIP 2.0 Protocol, Wi-Fi (IEEE 802.11 ac/a/b/g/n) @ 2.4GHz & 5GHz Cellular Network 4G LTE-FDD: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/66/71; 4G LTE-TDD: B34/38/39/40/41 Display 8-inch IPS TFT LCD color multi-touch screen (700cd/m²) Camera 2MP binocular camera, 120° wide-angle, 1280 × 800 resolution QR Code Dynamic QR codes on the ZKBio Zexus Mobile App Card Type Dual frequency, 125KHz ID & 13.56MHz IC / DESFire; HID Prox / HID iClass (coming soon) Firmware User Capacity 100,000 Face Templates Capacity 100,000 Palm Templates Capacity 20,000 (coming soon) Fingerprint Capacity 30,000 Card Capacity 100,000 Transaction Capacity 2,000,000 Standard Firmware Functions Record Query, Access Levels, Groups, Holidays, Duress Mode, Anti-Passback, Anti-Spoofing, Customization of Wallpaper & Screen Saver, Tamper Switch Alarm, Multiple Authentication Methods, Video Intercom (ZKTeco Private Protocol via TCP/IP and SIP Client via SIP 2.0) Language English, Arabic, Farsi, Spanish, Portuguese, Russian, Thai, French, Indonesian, Japanese, Korean, Vietnamese, Turkish, Traditional Chinese Software Supported Software ZKBio CVSecurity V6.8.0; ZKBio Zexus (Mobile App) Performance Ingress Protection Rating IP66, IK07 Card Reading Distance 1cm–5cm Facial Authentication Distance 0.3m–1.2m (human height 0.9m to 2.4m) Facial Authentication Time < 1 second Facial Authentication 1:1, 1:N Facial Authentication Algorithm ZKFace VX5630 Facial Authentication FRR 1% Facial Authentication FAR 0.01% Fingerprint Sensor Type Optical Fingerprint Authentication Time ≤ 0.5 second Fingerprint Authentication Method 1:1, 1:N Fingerprint Authentication Algorithm ZKFingerprint V10.0 Fingerprint Authentication FAR 0.0001% Fingerprint Authentication FRR 0.01% Interface USB 1; USB 2.0 (for OTA) Power Adapter 12V 3A Ethernet RJ45, 1000M RS-485 1 (for ZKTeco Reader) Wiegand Input 1 Wiegand Output 1 Auxiliary Input 1 Sensor 1 Lock 1 1 (controlled) Lock 2 1 Exit Button 1 Alarm 1 Power Output 1, 12V Reset Button 1 External Battery Detection 1 (reserved) External DC Detection 1 (reserved) External AC Detection 1 (reserved) Microphone 2 Speaker 1 General Power Supply 12V 3A; PoE (IEEE 802.3at) Dimensions 277.9 × 134.9 × 34.3mm Operating Temperature -30°C to 60°C (-22°F to 140°F) Operating Humidity 10% to 90% RH (non-condensing) Operating Environment Outdoor / Sheltered Outdoor Gross Weight 2.3 kg Installation Method Wall-mounted (compatible with Asian Gang-Box / Single Gang-Box; standard) or turnstile top-mount bracket (compatible with Rots-02; optional) Certifications ISO14001, ISO9001, CE, FCC, equivalent to RoHS Order ID AC01-PF341H-44 Data Sheet / User Manual GL_FaceTima8_InstallationGuide 1 file(s) 7.8 MB Download GL_FaceTima+8_User+Manual 1 file(s) 7.8 MB Download L_FaceTima+8_Quick+Start+Guide_ 1 file(s) 7.8 MB Download GL_FaceTima8_Datasheet 1 file(s) 7.8 MB Download
