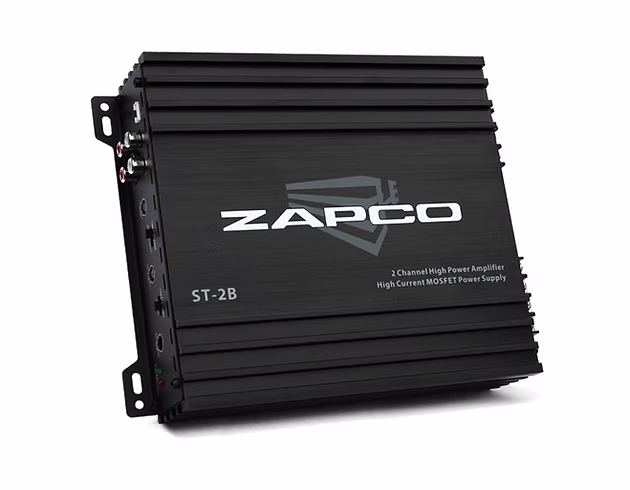

ST-2B 2-Ch. Class AB Amplifier

Features and Functions – 2-Channel, Class-AB Full Range Amplifier – Stable into 4 ohms bridged or 2 ohms stereo load – MOSFET power supply – RCA and OEM speaker level input – Variable Inputs Gain Control – Variable FULL / LP / HP Electronic Crossover – Variable Bass Boost Technical Specifications – Power @ 4Ω: 2 x 65 watts – Power @ 2Ω: 2 x 90 watts – Power @ 4Ω Bridged: 1 x 180 watts – THD @ Rated Power < 0.1% – Signal to Noise Ratio > 90dB – Channel separation > 45dB – Frequency Response 15Hz to 30KHz ±1dB – Input Sensitivity .25v to 5v – Net Dimensions (mm): 182(W) x 52(H) x 200(L) – Overall Dimensions (mm): 182(W) x 52(H) x 230(L)
