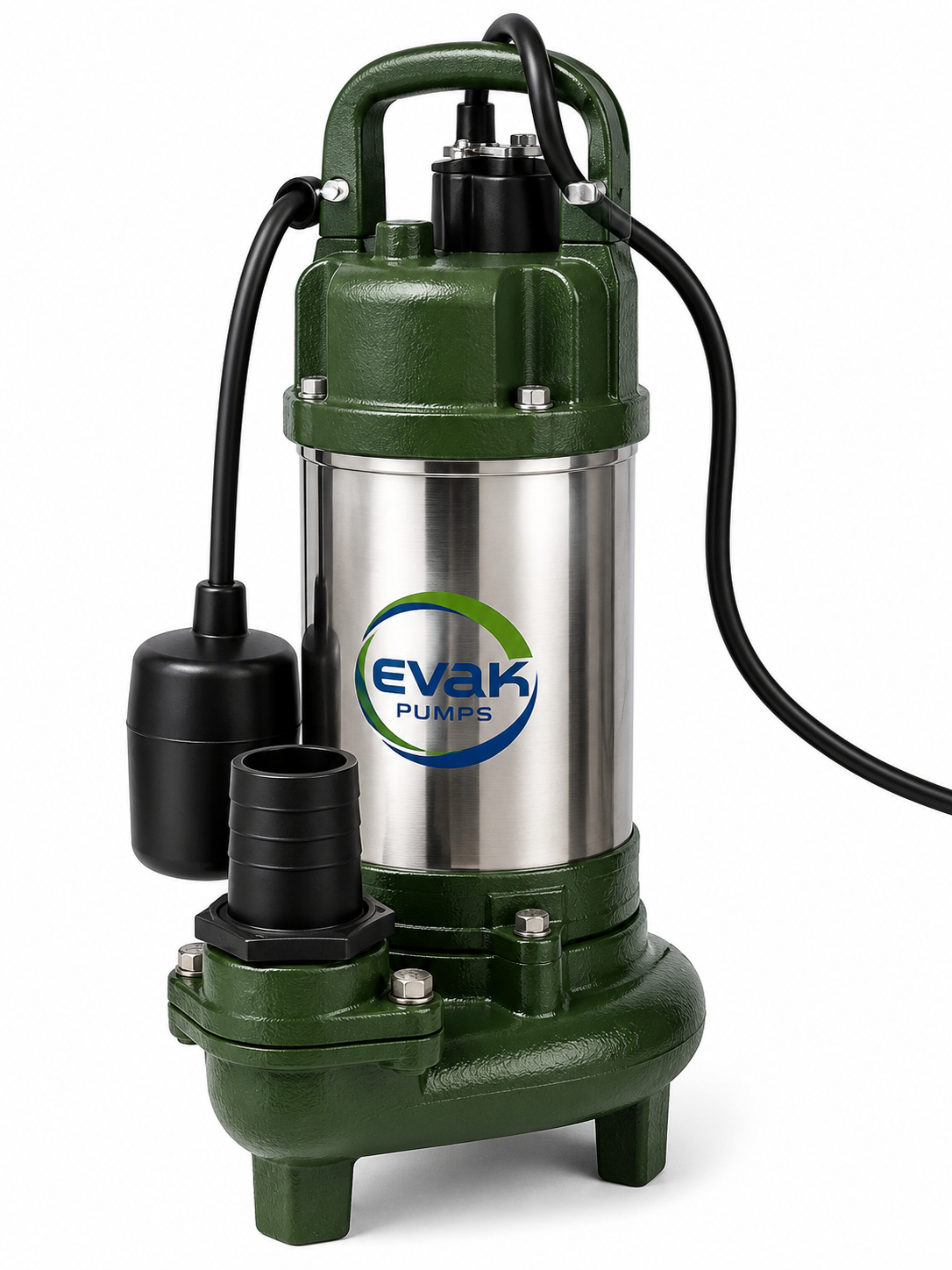

Evak Agivort Range

The Evak Agivort range is a family of heavy-duty submersible slurry pumps built for water other pumps can’t shift — sludge, slurry, and heavily sediment-laden water on construction sites, in civils and utilities, and at treatment lagoons. The name says how it works: an Agitator paired with a Vortex impeller. The 316 stainless steel agitator stirs settled solids back into suspension, and the vortex impeller passes them through without clogging. Six pumps in the range, from 0.37 kW to 3.7 kW, all with 2″ discharge. Smaller models (0.5–1 HP) available in 230V single-phase auto, larger models (2–5 HP) in 400V three-phase manual. FC200 cast iron pump body, AISI 304 stainless motor housing, 316 stainless agitator, twin EKK Eagle Burgmann mechanical seals. 316 SS Agitator 0.37–3.7 kW Motor range 2″ Discharge 25 m Max head (5.50) Pump range Model Power Voltage Operation Max flow Max head Weight Agivort 5.05 0.37 kW / 0.5 HP 230V Auto 310 L/min 9 m 13 kg Agivort 5.10 0.75 kW / 1 HP 230V or 400V Auto (230V) / Manual (400V) 460 L/min 12.5 m 18 kg Agivort 5.20 1.5 kW / 2 HP 230V or 400V Auto (230V) / Manual (400V) 650 L/min 18 m 33 kg Agivort 5.50 3.7 kW / 5 HP 400V Manual 980 L/min 25 m 56 kg How the Agivort handles what other pumps can’t Solids in slurry settle and pack down at the bottom of a sump or excavation, and a standard sewage pump pumps clear water off the top while leaving the sludge behind. The Agivort’s 316 stainless steel agitator stirs settled material back into suspension, and the vortex impeller then passes it through the pump. The result keeps shifting solids long after a standard pump would have stalled — suits construction dewatering with heavy sediment, sludge lagoons, settlement tank cleaning, and mining or tunnelling work. 316 SS agitator Vortex impeller FC200 cast iron Twin SiC seals IP68 Hire-fleet grade Construction upgrade at 2 HP. The 5.05 and 5.10 use Nylon 6 motor cover and handle; the 5.20 and 5.50 upgrade to full FC200 cast iron motor cover and SS41 stainless steel handle for industrial duty. All models handle slurry with total solids concentration up to 30% by weight. Maximum liquid temperature 40 °C. Maximum submersion depth 10 m. For clean-water dewatering without agitator (silty site water), see the Evak Trenchman range. For heavy sewage with large solids, see the Evak Hippo range.
