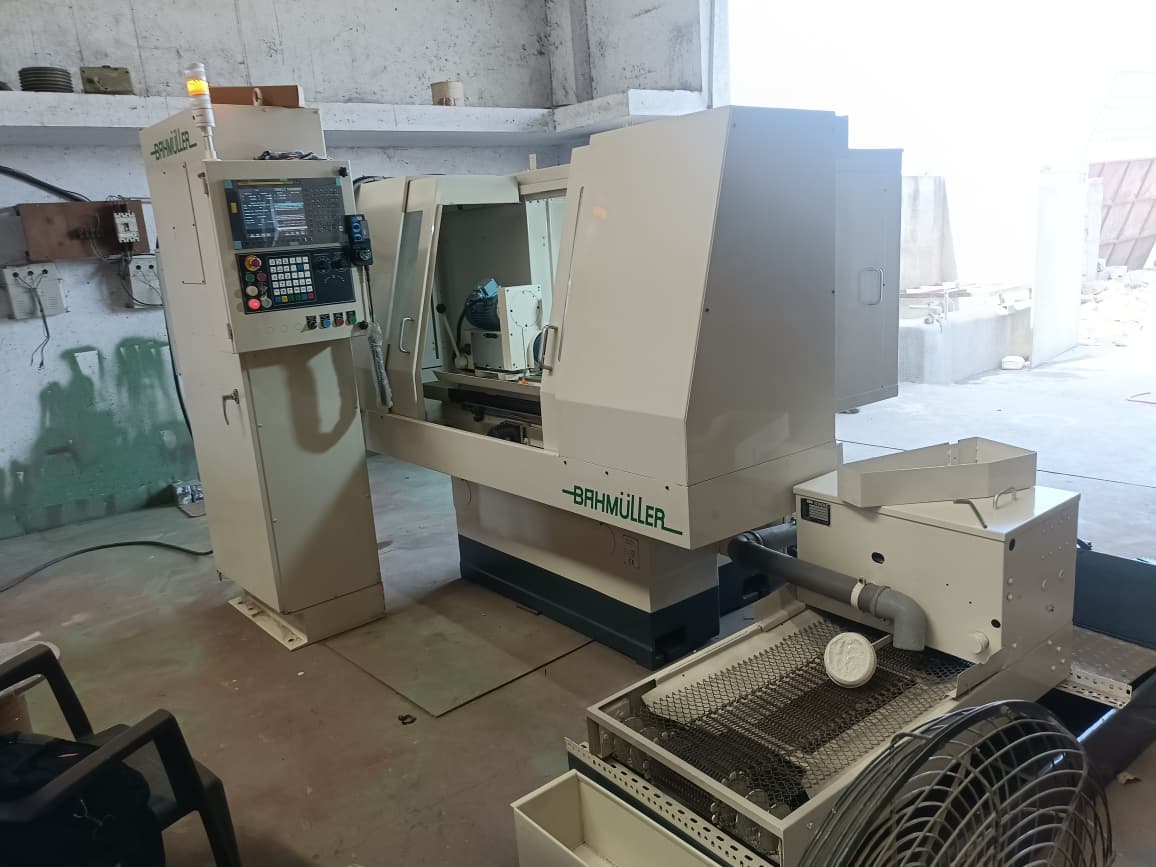

Bahmüller AS 300 CNC Cylindrical Grinder

Bahmüller AS 300 CNC Cylindrical Grinder CNC Cylindrical Grinder Specification: Maximum grinding length: 300 mm Center height: 100 mm Max load between centers: 30 daN Max overhang load (from spindle nose): 1,500 Ncm Max total connected load: 8.5 kVA Weight without control cabinets approx.: 2,400 kg Grinding Spindle Head Carriage (X-Axis): 180 mm Speed: 0 – 8 m/min Step increment: 0.0002 mm Display increment: 0.001 mm Plunge angle (swivel able): 0° / 30° Table travel: 470 mm Speed: 0 – 8 m/min Step increment: 0.0002 mm Display increment: 0.001 mm Swivel range of workpiece table: 9° Drive power: 1.0 kW Infinitely variable speed: 0 – 1,500 RPM Spindle taper: MK 4 Max runout in taper: 0.5 µm Grinding wheel diameter: 356 mm Bore: 127 mm Max width: 40 mm Drive power: 2.2 kW Max grinding wheel peripheral speed: 45 m/sec Taper: MK 3Quill travel: 30 mm Max cylinder error correction: +/- 0.1 mm Contact Us Visit AK Machine Tools
