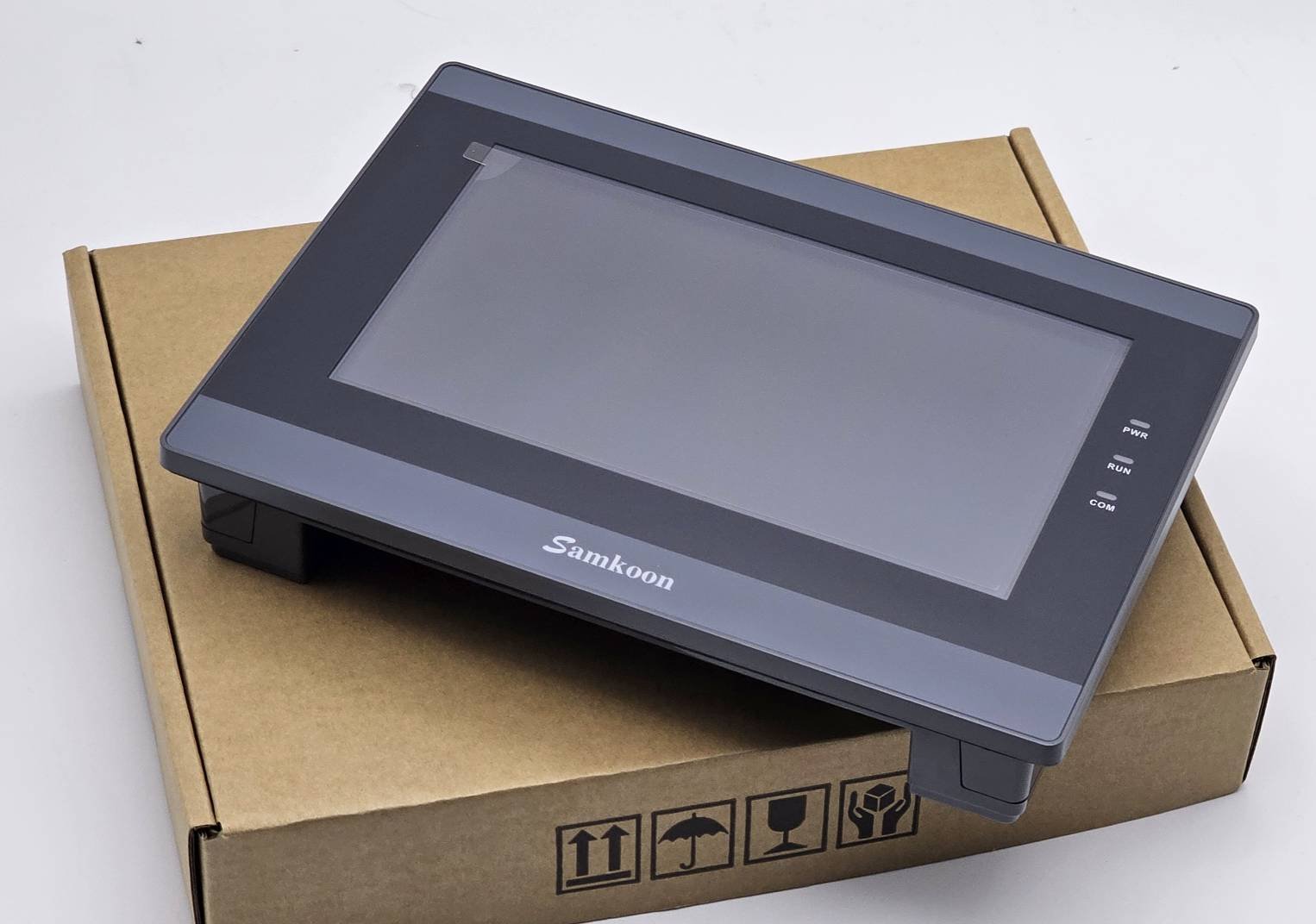

Samkoon HMI SK-070QE

SK-070QE is a 7-inch industrial HMI built on Linux, with a 1024 × 600 display, dual-core Cortex A7 1GHz processor, and practical serial communication interfaces including RS232 and RS485/422. Display size & Resolution : 7 inch & 800*480 Backlight Type: LED backlight Screen Material : ITO Colour Depth : 24 bits Color: 16.77 million true colors Bright: 450 cd/㎡ Touch panel: 4-wire high accuracy touch screen Backlight life: 20000 hours CPU : Cortex-A7 1Ghz(dual core) Memory & Flash : 128MB DD3 & 128MB Flash Serial interface COM1: RS232 Serial interface COM2: RS485/422 Serial interface COM3: RS485 Ethernet : Not Support USB data transfer port : USB A Port (Pen drive) USB download port : USB B port Rated voltage : DC12V~24V ±15% Rated power : 4 W Operating temperature : -20~55℃ Operating humidity : 5~95%RH (no condensation) Compatibility: Compliant with FCC CE certification: Complies with EN55032 and EN55035 standards Dimension (mm) : 203*145*35 Mounting dimension (mm) : 192*138 Weight – 0.7 Kg Supports most of the PLCs like Delta ,Mitsubishi, Omron, AB, Siemens, ABB, Xinje etc., Software: Programming: SKTOOL7.1 Download Catalog
