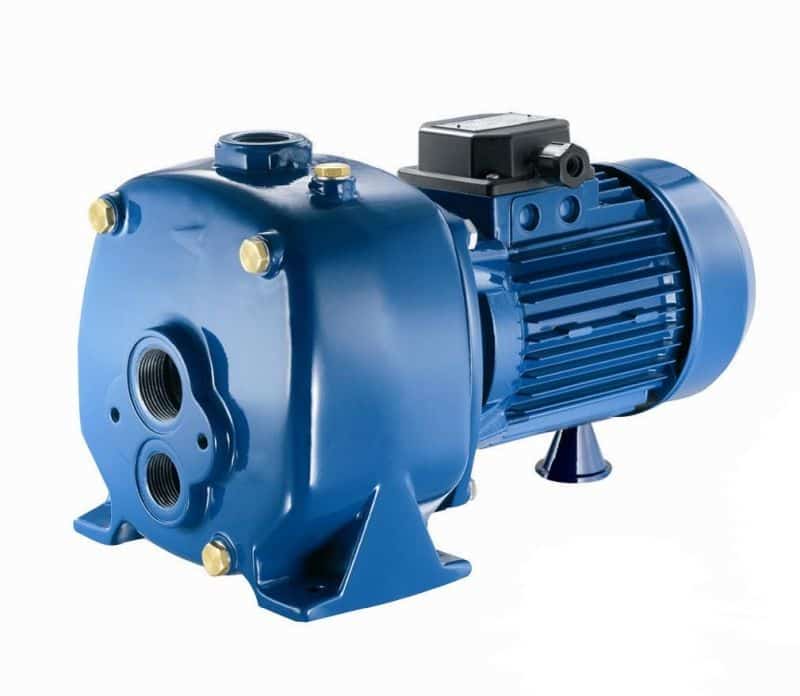

Pentax AP Series

he Pentax AP Series are deep well pumps ideal for pumping clean water from wells and bores with 2” or 4″ external ejectors with two different nozzle sizes to suit the application. They are also ideal for long distance pumping, irrigation, gardening, water transfer and household water supply. FEATURES: Suction lift up to 50m Available with 2″ ofr 4″ Ejectors and P20 or P30 nozzles Heavy Duty Build Liquid temperature: 0 – 50 °C Maximum operating pressure: 8 bar Enclosure class: IP44 Insulation class: F Duty rating: Continuous Built in thermal overload protection CONSTRUCTION MATERIALS: Cast Iron Body & Motor Bracket Brass Impeller Ceramic / Graphite Mechanical Seal AISI 303 Stainless Steel Shaft INSTALLATION: Before operation, a foot valve has to be installed at the foot of the ejector. Fill the pump and suction pipework with water once it has been installed and connected. Minimum pump operating heads must be maintained to ensure correct pump operation. “
