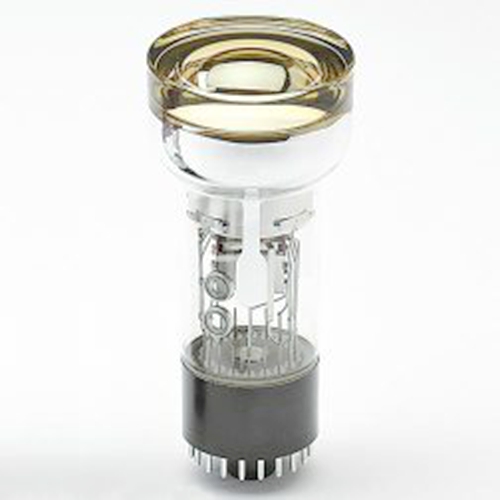

hamamatsu Photomultiplier tube R15608

hamamatsu Photomultiplier tube R15608 Download Datasheet: hamamatsu Photomultiplier tube R15608 For scintillation counting, Fast Time Response, 76 mm dia., Head-on type, Bialkali photocathode (Effective area : 65 mm dia./Spectral response : 300 nm to 650 nm) Specifications Type Head-on type Features Fast response time Tube Size Dia.76 mm Photocathode Area Shape Round Photocathode Area Size Dia.65 mm Wavelength (Short) 300 nm Wavelength (Long) 650 nm Wavelength (Peak) 420 nm Spectral Response Curve Code 400K Photocathode Material Bialkali Window Material Borosilicate glass Dynode Structure Linear-focused Dynode Stages 10 [Max. Rating] Anode to Cathode Voltage 2000 V [Max. Rating] Average Anode Current 0.1 mA Anode to Cathode Supply Voltage 1750 V [Cathode] Luminous Sensitivity Min. 70 μA/lm [Cathode] Luminous Sensitivity Typ. 85 μA/lm [Cathode] Blue Sensitivity Index (CS 5-58) Typ. 9.5 [Cathode] Radiant Sensitivity Typ. 76 mA/W [Anode] Luminous Sensitivity Typ. 800 A/lm [Anode] Radiant Sensitivity Typ. 7.1 x 105 A/W [Anode] Gain Typ. 9.4 x 106 [Anode] Dark Current (after 30min.) Typ. 15 nA [Anode] Dark Current (after 30min.) Max. 100 nA [Time Response] Rise Time Typ. 1.9 ns [Time Response] Transit Time Typ. 26 ns [Time Response] Transit Time Spread Typ. 0.4 ns [Anode] Pulse Linearity (2% deviation) 30 mA [Anode] Pulse Linearity (5% deviation) 60 mA
