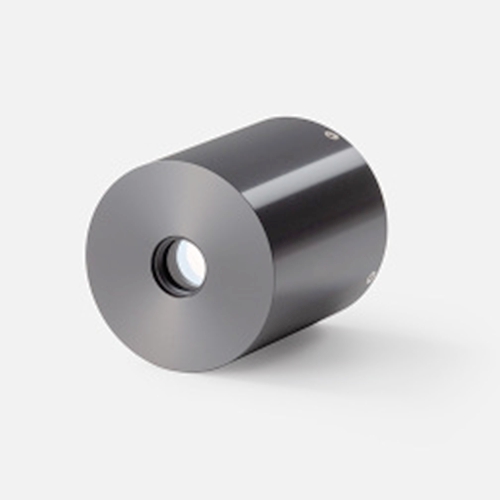

hamamatsu Microchannel plate photomultiplier tube R3809U-61

hamamatsu Microchannel plate photomultiplier tube R3809U-61 Download Datasheet: hamamatsu Microchannel plate photomultiplier tube R3809U-61 45 mm dia., MCP-PMT, GaAs photocathode (Effective area :10 mm dia./Spectral response : 370 nm to 920 nm) Specifications Type MCP-PMT Tube Size Dia.45 mm Photocathode Area Shape Round Photocathode Area Size Dia.10 mm Wavelength (Short) 370 nm Wavelength (Long) 920 nm Wavelength (Peak) 750 nm to 850 nm Photocathode Material GaAs Window Material Borosilicate glass Dynode Structure MCP Dynode Stages 2 [Max. Rating] Anode to Cathode Voltage -3400 V [Cathode] Luminous Sensitivity Min. 400 μA/lm [Cathode] Luminous Sensitivity Typ. 700 μA/lm [Cathode] Radiant Sensitivity Typ. 85 mA/W [Anode] Luminous Sensitivity Typ. 210 A/lm [Anode] Gain Typ. 3.0 x 105 [Time Response] Rise Time Typ. 200 ps [Time Response] Transit Time Spread Typ. 145 ps
