Quick Release Snap-Tronic

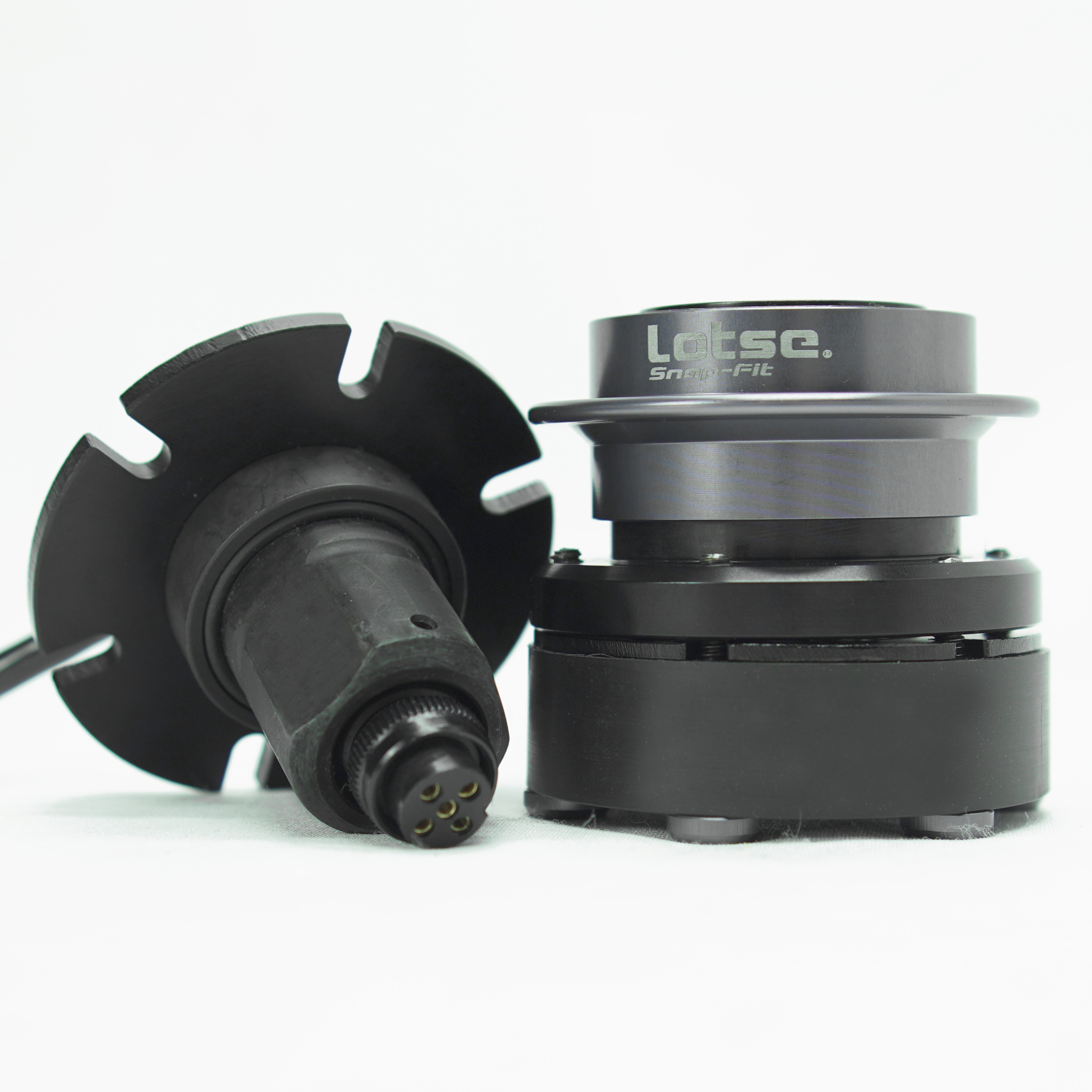

Quick Release Snap-Tronic The Snap-Tronic features the same SFI-certified coupling and uncoupling system as the Snap-Fit family, with the addition of integrated electronics. This eliminates the need for external wiring to connect buttons or switches on the steering wheel, supporting up to 4 separate inputs. The connection includes a total of 5 pins. Constructed entirely from aluminum, the unit consists of two main parts: the body, which attaches to the steering wheel (available in black or graphite), and a steel pinion, which mounts to a steering hub adapter (compatible with 6x64mm to 6x70mm bolt patterns). The locking mechanism utilizes a 3-ball detent system and is SFI-approved. Attention: The Snap-Fit is a product designed and built exclusively for use in competitive racing. Dimensions and Specifications: Total assembled length: 90mm (3.4 Inch) Body bolt pattern (steering wheel side): 6 x 64mm (brazilian) Pinion bolt pattern (fixed hub side): 6 x 64mm to 70mm (brazilian and european) Body material: Aluminum Pinion material: Nickel-plated steel Included Components: 1x Body 1x Pinion (with integrated female connector and crimped wiring harness) 1x Disc with attached male connector 1x Nylon spacer 6x Mounting screws Mounting Compatibility: Steering wheel side: Steering wheels with a 6 x 64mm bolt pattern Hub side: Standard domestic and European fixed steering hubs Electronics Compatibility: The Snap-Tronic features an internal 5-pin Mil-Spec style male/female connector system, allowing for any configuration that utilizes these 5 pins. User Manuals: SnapFit Manual Product Code and Variations: SNF-5V – Snap-Tronic
