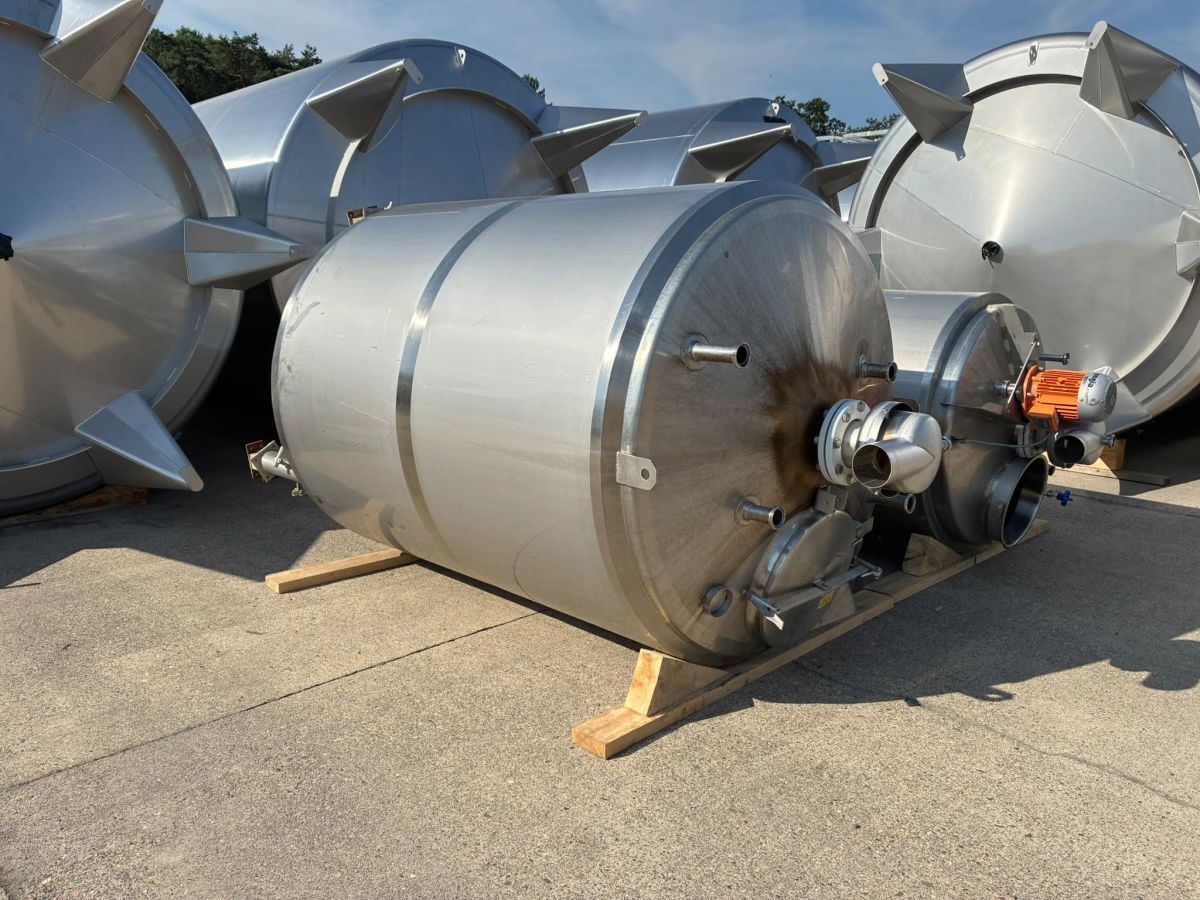

4000 liter tank i Rostfritt 304

Article type: second-hand storage tank Volumetric volume (L): 4.000 L Pressure in tank: ATM – atmosferic Material wet parts: SS AISI 304 (V2A) Model: vertical Configuration: insulated Heat exchanger: no Insulation: yes Mobile tank: no Top type: conical Shape of tank: cylindrical Bottom type: conical Bottom outlet: yes Total discharge: yes Fixation points: 3 non adjustable feet Insulation material: Rockwool Outer jacket (ornamental wall): RVS 304L Manway(s): RVS 304 Fixation point(s): RVS 304 Suitable for food industry: no Documents included: no Technical drawing included: no Registration plate on the tank: no Flange for agitator: no Number of manways: 1 Position of manway: headside Hinged lid: yes Tank outlet: inside Ø 80 mm Agitator: no, optional Internal diameter tank: 1.600 mm Distance from outlet to ground: 100 mm Outer diameter tank: 1.760 mm Cylinder height: 2.075 mm Total height of tank: 3.300 mm Empty weight tank: 500
