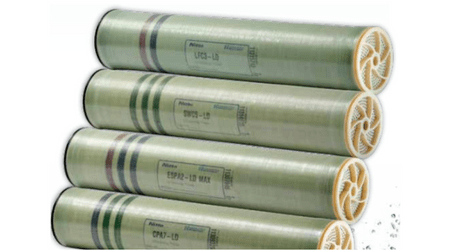

Màng RO Nitto Denko PRO-XT2 – An Vi Group Cung Cấp

Nitto Denko designs the PRO-XT2 reverse osmosis (RO) membrane to deliver exceptional water purification. It incorporates advanced thin-film composite (TFC) technology, achieving high salt rejection and consistent performance in challenging conditions. This membrane minimizes energy consumption by operating efficiently at lower pressures while maintaining high flow rates. The PRO-XT2 serves diverse applications, such as industrial water treatment, brackish water desalination, and wastewater recycling, providing robust and reliable performance. Its compact structure and straightforward installation process make it an ideal solution for modern water treatment systems. 1. Specified Performance of RO membrane PRO-XT2 Nitto Denko: Permeate Flow (at initial test): 6,230 gpd (23.6 m3/d) Salt Rejection: 7% (99.6% minimum) Test Conditions: NaCl solution: 32,000 ppm Applied Pressure: 800 psig (5.5 MPa) Operating Temperature: 77°F (25°C) Permeate Recovery: 15% pH Range: 6.5 -7.0 2. General Product Description: Configuration: Low Fouling Spiral Wound Membrane Polymer: Composite Polyamide Membrane Active Area: 340 ft2 (31.6 m2) Feed Spacer: 34 mil (0.86 mm) Packaging: All membrane elements are supplied with a brine seal, interconnector, and O-rings. Elements are enclosed in a sealed polyethylene bag containing less than 1.0% sodium meta-bisulfite solution, and then packaged in a cardboard box. 3. Product Use and Restrictions: Maximum Applied Pressure: Temperature dependent (see Chart 1 for detail) Maximum Chlorine Concentration: < 0.1 ppm Maximum Operating Temperature: Pressure dependent (see Chart 1 for detail) pH Range, Continuous (Cleaning): 2-11 (1-13) at T <25˚C 2-11 (1-12) at T= 25 to <35˚C 3-10.5 (2-11) at T= 35 to 65˚C 4-8 (na) at T= 65 to 95˚C Maximum Feedwater Turbidity: 1.0 NTU Maximum Feedwater SDI (15 mins): 5.0 Maximum Feed Flow: 75 gpm (17.0 m3/h) Minimum Brine Flow: 12 gpm (2.7 m3/h) Maximum Pressure Drop for Each Element: 10 psi (0.07 MPa) Kindly contact with An Vi Group: An Vi Group is specialized in designing & commercial & industrial reverse osmosis (RO) water treatment and purification systems for over 15 years. We engineer & build custom and turn-key water treatment & purification systems including water softeners, waste water treatment, sewage treatment, RO water filtration, UV water purification, reverse osmosis plants, brackish & tap water reverse osmosis systems, sea water reverse osmosis systems, ultrafiltration systems, RO cleaning skids, cartridge filters housing, deionizers, containerized equipment, electrodeionization units. All of our systems are engineered & manufactured in Vietnam. Address: 170/8B Vuon Lai Str, Phu Tho Hoa Ward, Ho Chi Minh City, Vietnam. Kindly, contact to An Vi Group for consultion and buying RO membrane PRO-XT2 designed and manufactured by Nitto Denko. Tell: +84 28 6651 8768 Sales : +84 964 267 595 WhatsApp/ Zalo/ Wechat: +84 964 26 7595 Email : bichvi@anvigroup.com.vn Email : info@anvigroup.com.vn
