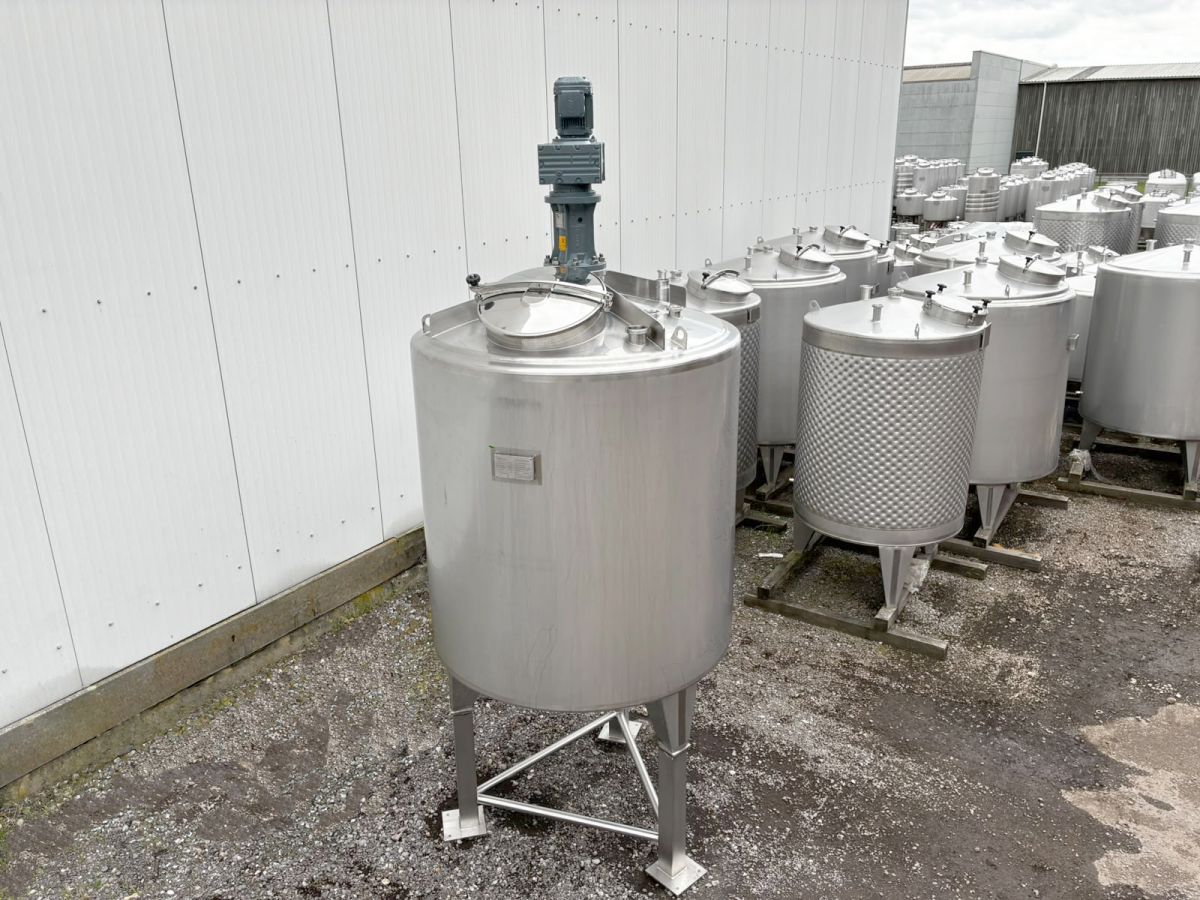

2500 liter tank i Syrafast 316

Article type: second-hand mixing tank Additional information: The tank has some dents and scratches on the outer insulation jacket. Please look closely at the pictures. The previous product was chocolate.; we can’t give any guarantees about the heating/cooling jacket; we can’t give any guarantees about the agitator Volumetric volume (L): 2.500 L Max. density P (kg/m³): 1.200 Ra inner weld: 0,80 Finish stainless steel: 2B Pressure in tank: ATM – atmosferic Max. temperature (°C): 100 °C Min. temperature (°C): -10 °C Material wet parts: SS AISI 316L (V4A) Model: vertical Configuration: insulated with heat-exchanger Heat exchanger: yes Insulation: yes Mobile tank: no Top type: conical 15 ° Shape of tank: cylindrical Bottom type: conical 15 ° Total discharge: yes Fixation points: 3 non adjustable feet Type of HE on the cylinder: dimple-jacket Position HE: the complet cilinder Height HE: 1.250 mm Water pressure HE: 3 Bar Steam pressure HE: 0,49 Bar Contact surface cylinder: 5,30 m² Connection HE: 1” Working temperature HE cylinder: 110 °C Type of HE on the bottom: dimple-jacket Heat exchanger bottom connected with cylinder: yes Connection of the bottom to the cylinder: buiten isolatie Water pressure HE: 3 Bar Steam pressure HE: 0,49 Bar Contact surface bottom: 0,50 Total contact surface: 5,80 Connection HE: 1” Working temperature HE bottom: 110 °C Heat exchanger: RVS 304 Insulation material: Rockwool Outer jacket (ornamental wall): RVS 304 Manway(s): RVS 316 Gasket manway(s): EPDM Fixation point(s): RVS 304 Wet parts agitator(s): SS AISI 316L (V4A) Suitable for food industry: yes Documents included: yes, optional Technical drawing included: yes Registration plate on the tank: yes Flange for agitator: yes Flange type: DN150 PN10 Number of manways: 1 Position of manway: headside Height manhole 1 (mm): 500 mm Tank outlet: inside Ø 50 mm Outlet type: DIN11851 Outlet of tank: DN50 Agitator: yes Agitator type: anchor Position engine: at the top Number of revolutions: 10 rpm Power: 0.75kW Voltage: 230/400 V V – three-phase Top: 2 mm Cylinder: 2,50 mm Bottom: 2,50 mm Cylinder: 2 Insulation body: yes Bottom: 2 Insulation bottom/sides: yes finish of the outer jacket: welded Insulation thickness: 50 Internal diameter tank: 1.393 mm Distance from outlet to ground: 900 mm Outer diameter tank: 1.514 mm Cylinder height: 1.500 mm Feet height: 1.112 mm Total height of tank: 3.750 mm Total outer width: 1.520 mm Total outer length: 1.520 mm Empty weight tank: 440
