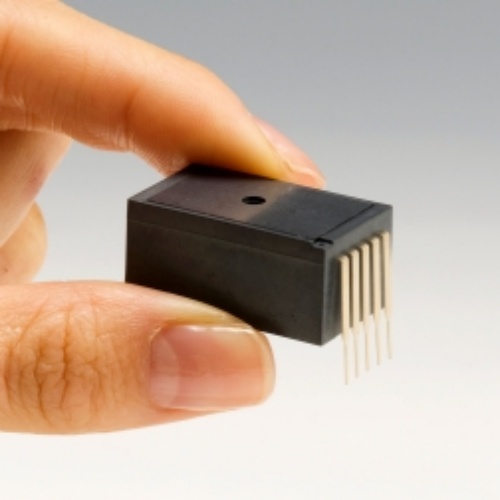

Hamamatsu C10988MA-01 visible light Mini-spectrometer

Hamamatsu C10988MA-01 visible light Mini-spectrometer The Hamamatsu C10988MA-01 is a super compact micro spectrometer from the MS series, designed to be integrated into mobile measurement devices. Its main highlights are its tiny size (thumb-sized) and the combination of MEMS and image sensor technology. Key Specs: – Spectral Response Range: 340 to 750 nm (near-infrared) – Spectral Resolution (FWHM): Typical 10nm, Maximum 14nm – Sensor Type: Built-in CMOS linear image sensor, total of 256 pixels – Cooling Method: Uncooled – Dimensions: 27.6 × 16.8 × 13 mm – Weight: around 9 g Tech Features: – Optical Structure: Uses an internal convex lens, with the grating directly made on the lens surface using nanoimprint technology, no need for complex discrete optical elements. – Application Scenarios: Its small size and near-infrared detection capability make it suitable for portable analysis, mobile measurement devices, and spectroscopy in space-limited scenarios. Hamamatsu C11708MA C10988MA-01 Mini-spectrometer
