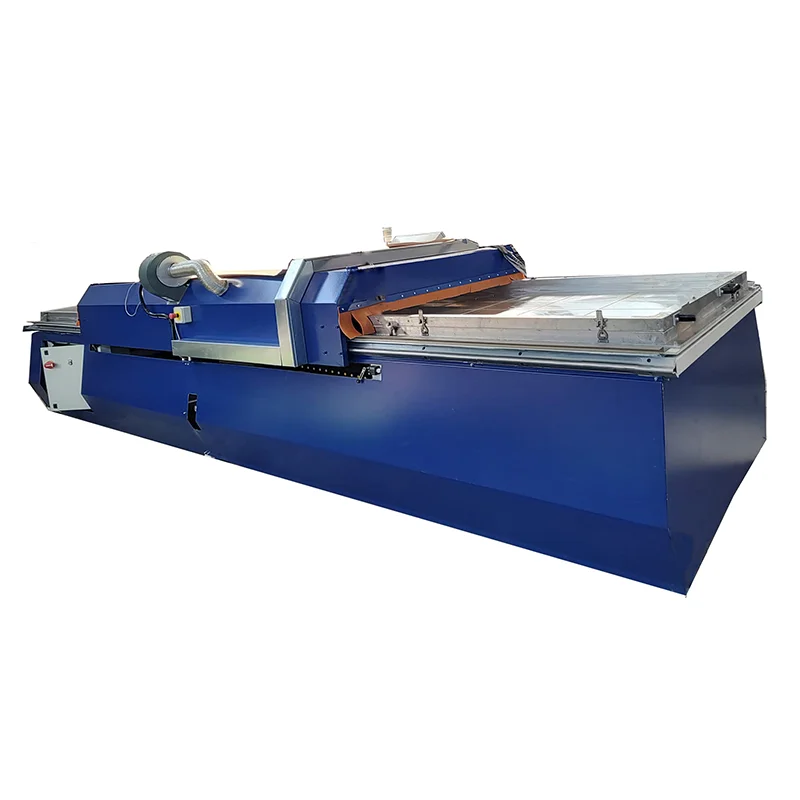

Vacuum Thermo PVC Press

The Vacuum Thermo PVC Press uses vacuum and heat for the application of 3D thermoforming films on curved panels. The machine processes PVC, PPE, ABS, and other thermoforming films using a single sheet without the use of a membrane. The Vacuum Thermo PVC Press features an aluminum work surface with grooves for vacuum propagation and a vacuum pump with a 200-liter tank. The heating chamber moves along linear guides and uses infrared heating. Infrared lamps allow the Vacuum Thermo PVC Press to heat up faster and transmit higher temperatures to the material being processed compared to traditional electrical resistors. Functions: Application of 3D thermoforming films Processing of PVC, PPE, ABS, and other thermoforming films Single-sheet application Operation without a membrane Final Products: Doors Furniture doors for bathrooms Furniture doors for kitchens Useful Dimensions: 25/14: 2340 x 1280mm 30/14: 2840 x 1280mm Standard Equipment: Aluminum work surface with grooves for vacuum propagation 1 vacuum pump with 200-liter tank Heating chamber movable along linear guides Infrared heating Infrared lamps for faster heating and higher heat transfer to the material Optional Equipment: The Vacuum Thermo PVC Press can be equipped with: Motorized mobile heating chamber Additional workstation with dedicated vacuum pump and tank
