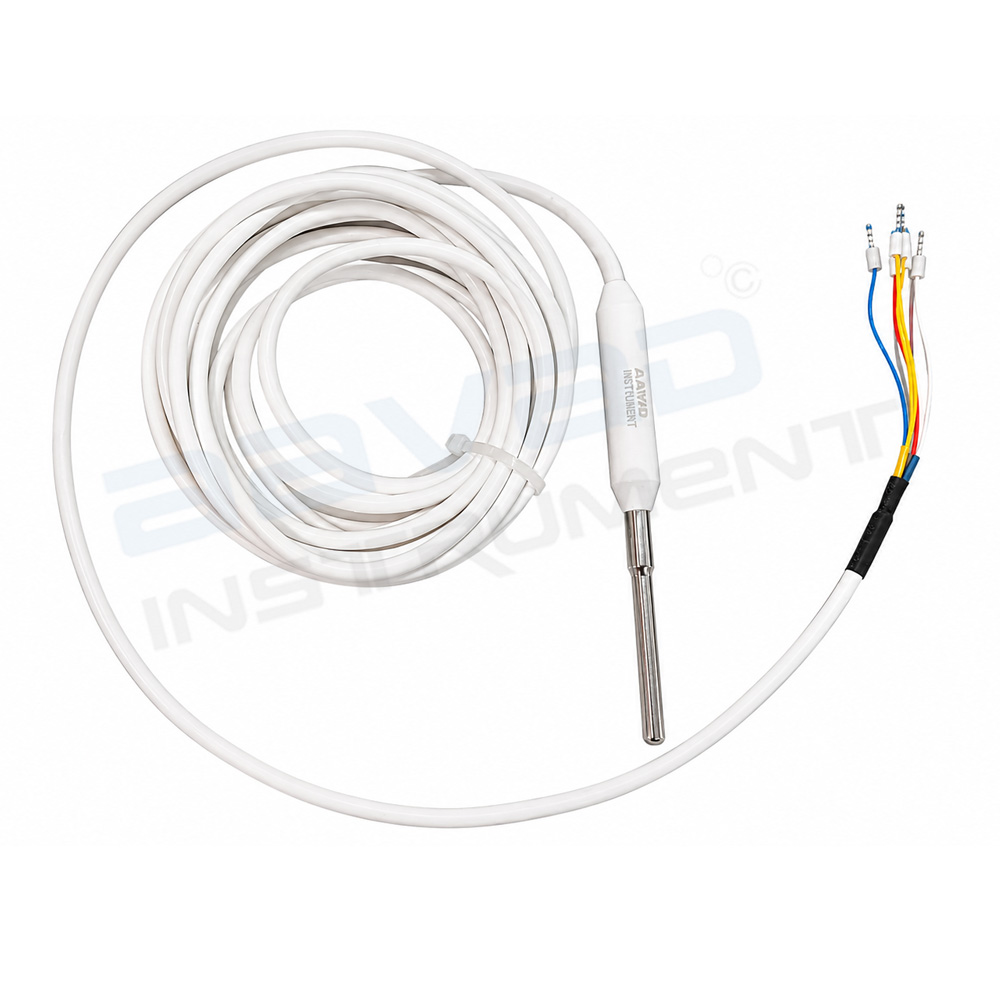

Autoclave RTD Sensor

Parameter Specification Type PT-100 Make Aavad Model APED-6×45 Configuration Duplex Total no. of wires 3+3 Wire Accuracy Class A / Class B / 1/3 DIN (Optional) Temperature range -50 To 250 Degrees C Sheath Material SS316 / SS316L Insulation Compacted MgO Insulation Cable length 5 Meter Cable insulation Silicon Cable Seal pot 8×20 mm Od 6 mm Length below seal pot 45 mm
