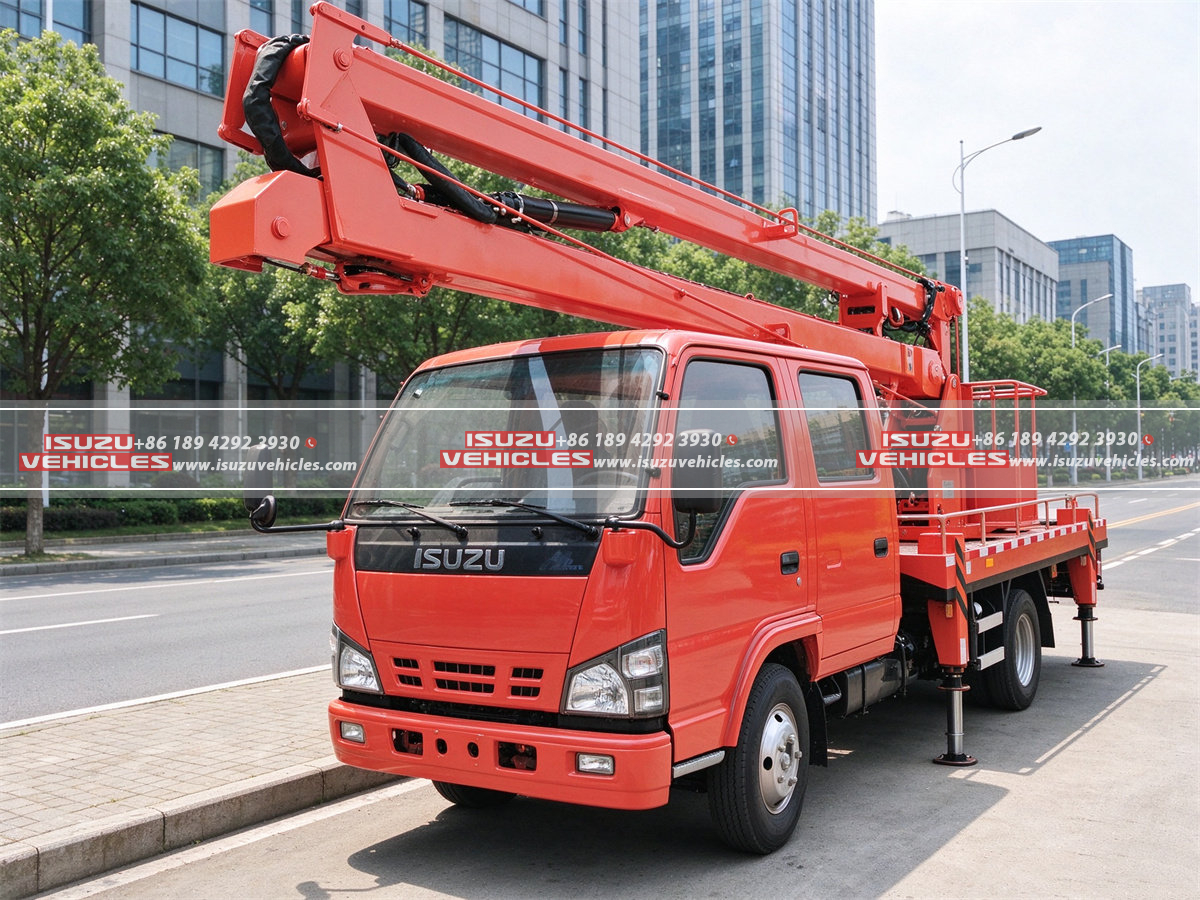

ISUZU 16M Articulated Aerial Truck
Aerial Platform Model ISZ16 Maximum Working Height 16 m Maximum Bucket Bottom Height 14.9 m Maximum Outreach 8.1 m from turntable center Maximum Loading Capacity 250 kg Turntable Rotation 360° continuous Bucket Rotation ±90° Bucket Dimensions (L × W × H) 1400 × 735 × 1100 mm Bucket Material SS304 stainless steel Boom Type Three-section folding-arm boom Outrigger Span Front/rear: 4200 mm; left: 4800 mm; right: 5000 mm Outrigger Configuration Front V-type; rear H-type Operating Controls Turntable seat; optional wireless remote control in bucket Compatible Truck Light-duty, 6-wheel truck Compatible Truck GVW 7.3 tonnes Compatible Truck Wheelbase 3360 mm
Specifications
- Brand
- ISUZU, Qingling ISUZU
- Certification
- CCC, CE, ISO14001:2015, ISO45001∶2018, ISO9000, ISO9001:2015, RoHS
- Color
- Customized Color, Orange, Red, White
