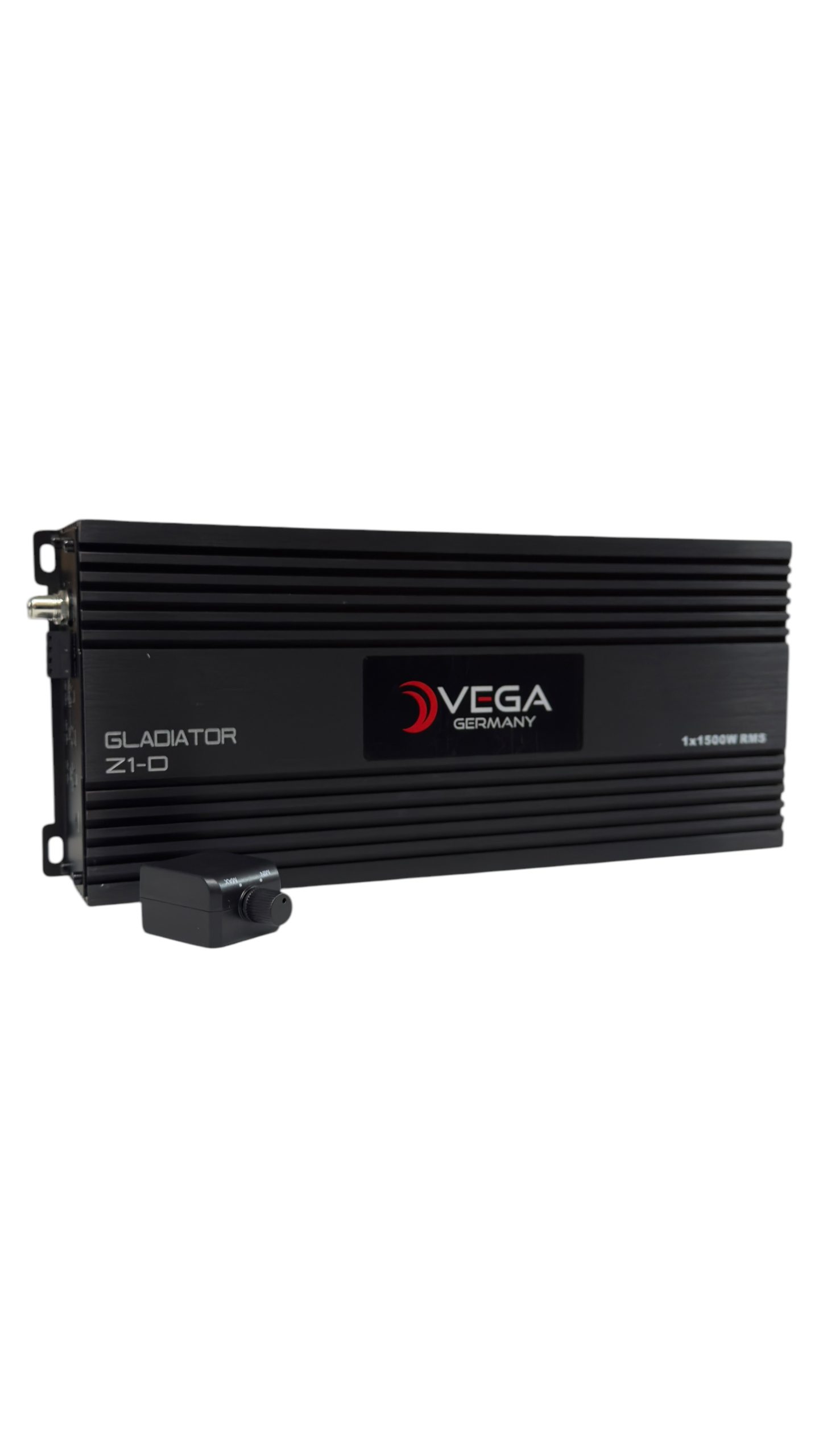

Z1-D GLADIATOR

Technical Data Power RMS (≤ 1% THD+N) Normal operation (one amplifier) – 1 x 900 Watts @ 4 Ohms – 1 x 1,200 Watts @ 2 Ohms – 1 x 1,500 Watts @ 1 Ohm Amplifier technology Class D Inputs – 2 x RCA / Cinch – 2 x Highlevel speaker input – 1 x Remote In – 1 x Remote control input Input sensitivity – RCA / Cinch: 0.5 – 6 Volts – Highlevel: 1.1 – 13 Volts Input impedance – RCA / Cinch: 20 kOhms – Highlevel: 9 – 33 Ohms Outputs – 1 x Speaker output Frequency response 10 Hz – 250 Hz Bass boost 0 – 12 dB / 30 – 80 Hz Lowpass 50 Hz – 250 Hz Bandpass 10 Hz – 250 Hz Subsonic 10 Hz – 50 Hz Phase 0° – 180° Signal-to-noise ratio (A-weighted) >90 dB Distortion (THD) 0.20 % Damping factor 150 Operating voltage 10 – 16 Volts (5 sec. down to 6 Volts) Power fuse 40A x 3 Dimensions (H x W x D) 2.05 x 12.83 x 5.31″ / 52 x 326 x 135 mm
