Mipro OCS, Multi-Element controller

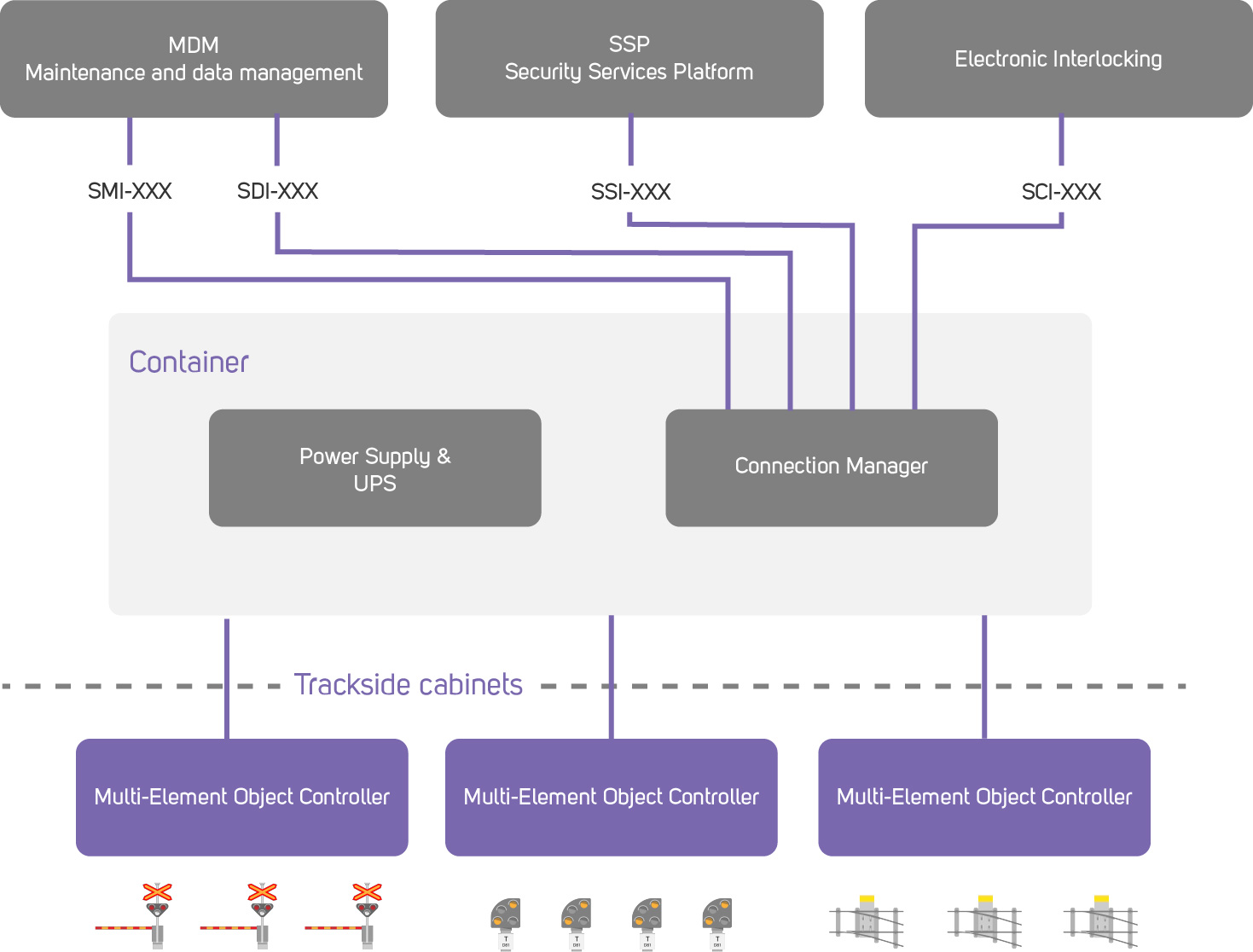

Multi-Element Object Controller for distributed systems Mipro OCS (Object Controller System) is a modular field control platform designed for modern railway signalling architectures. The system provides two types of controllers for centralised and distributed architectures. The Multi-Element Controller is designed mainly for distributed architectures. Its compact deployment concept allows it to be installed close to trackside equipment, including in wayside cabinets. The Multi-Element Controller is based on the HIMA HIMatrix safety PLC platform. A single Multi-Element Controller can control several elements of the same type. Key Benefits The Multi-Element Controller can be used in an unheated wayside cabinet in accordance with EN 50125-3, class T1. The Multi-Element Controller provides a flexible solution for applications where a limited number of field elements need to be controlled locally. For example, a single controller can control one or two signals located between stations using the EULYNX SCI-LS interface. The Multi-Element Controller supports a wide range of deployment scenarios—from highly centralised field control installations to distributed wayside architectures. EULYNX compliance Baseline release: EULYNX Baseline 4.2 Interface type: Standardised EULYNX interface SCI-IO, SCI-LC, SCI-LS, SMI, SDI Product additional data: Product datasheet: https://mipro.fi/en/rail-traffic/railway-solutions-and-references/mipro-ocs-object-controller-system/ References: Mipro Oy selected as supplier of EULYNX-based Object Controller System for Digirail project in Finland
