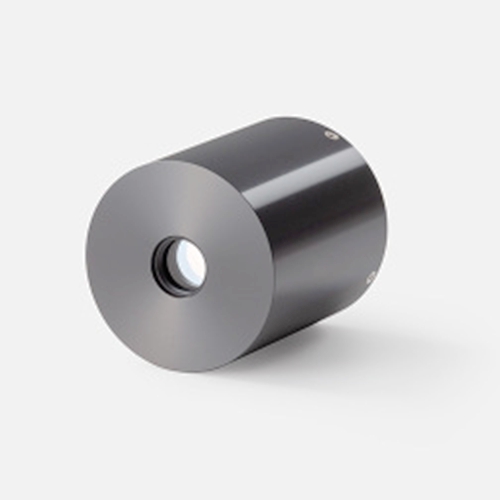

hamamatsu Microchannel plate photomultiplier tube R3809U-64

hamamatsu Microchannel plate photomultiplier tube R3809U-64 Download Datasheet: hamamatsu Microchannel plate photomultiplier tube R3809U-64 45 mm dia. MCP-PMT, GaAsP photocathode (Effective Area: 10 mm dia., Spectral response: 280 nm to 720 nm) Specifications Type MCP-PMT Tube Size Dia.45 mm Photocathode Area Shape Round Photocathode Area Size Dia.10 mm Wavelength (Short) 280 nm Wavelength (Long) 720 nm Wavelength (Peak) 550 nm to 650 nm Photocathode Material GaAsP Window Material Borosilicate glass Dynode Structure MCP Dynode Stages 2 [Max. Rating] Anode to Cathode Voltage -3400 V [Cathode] Luminous Sensitivity Min. 400 μA/lm [Cathode] Luminous Sensitivity Typ. 700 μA/lm [Cathode] Radiant Sensitivity Typ. 180 mA/W [Anode] Luminous Sensitivity Typ. 210 A/lm [Anode] Gain Typ. 3.0 x 105 [Time Response] Rise Time Typ. 200 ps [Time Response] Transit Time Spread Typ. 85 ps
