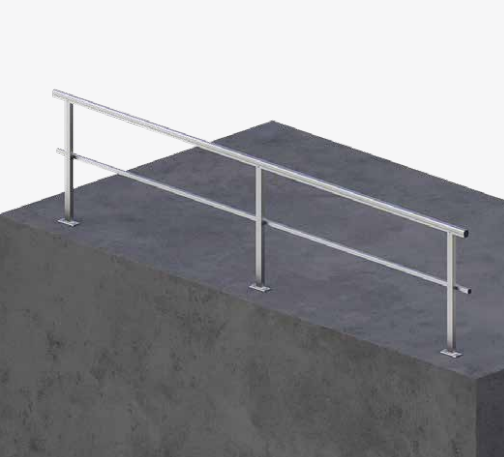

Top Mount Guardrail – for Tanks up to 3m Wide

GW1 SENTRY® Top Mount Guardrail (to be positioned around top fittings & manway at front of tank) Sentry is a best-in-class permanent Guardrail system. It is manufactured from corrosion-resistant aluminium and is secured into the roof structure with rivets or self drilling fasteners. It is quick and easy to install, with no need to lift counterweights to roof level. Extruded high grade structural (6106/T6) aluminium Handrail component – 50mm diameter section mounted 1000mm to 1100mm above floor surface Kneerail component – 40mm diameter section mounted 450mm below handrail Post component – 60mm x 40mm RHS section, post length 950mm to 1100mm above floor surface Toe board included Post spacing – max 2.0m intervals 2kg / m (approximate) Designed and tested to comply with requirements of BS EN ISO 14122-3:2016 and relevant statutory HSE guidelines PLEASE NOTE: THIS SYSTEM MUST BE INSTALLED ON SITE BY OTHERS
