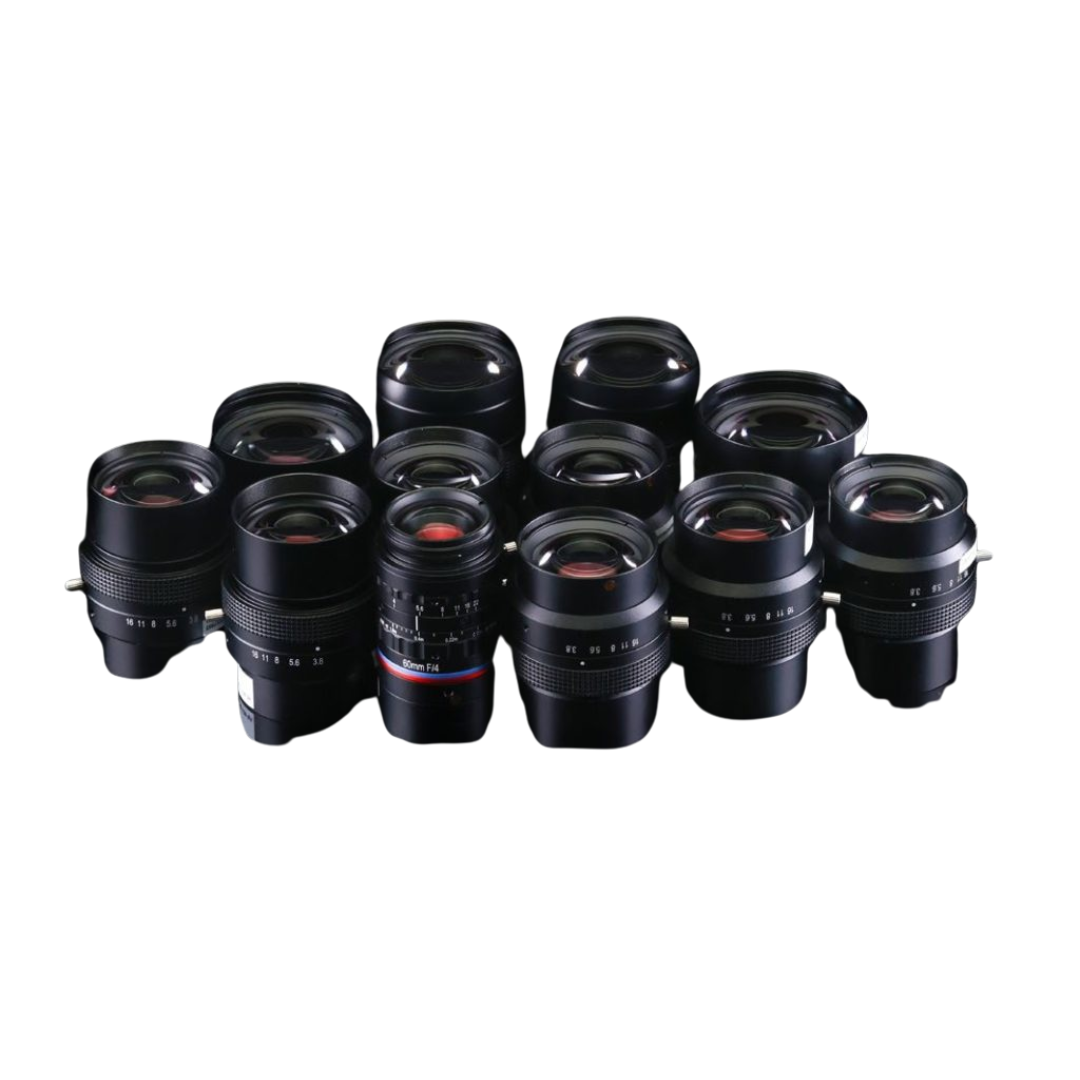

DM optical Line Scan Lens series<br>16K3.5μ

DM Optical 16K3.5μ Line Scan Lens Series Optimized for 16K line scan cameras with 3.5μm pixels, this ultra-high-resolution lens series delivers exceptional edge-to-edge image clarity with minimal distortion and uniform illumination across the full scan line. Engineered for large-format sensors with ~57 mm image circles, it ensures sub-pixel measurement accuracy and crisp edge definition for semiconductor wafer inspection, flat panel display quality control, high-precision PCB defect detection, and high-speed web inspection applications. Features: Focal length range: 41-116mm Maximum image circle: φ66 mm, compatible with 12K5μ cameras Specially developed for 16K 3.5μ ultra-high-resolution line scan cameras Lens resolution up to 160 lp/mm to fully meet 3.5μ pixel resolution requirements Max magnification range: 0.03x-0.8x Min distortion: <0.0008% Large aperture design with FNO 3.8
