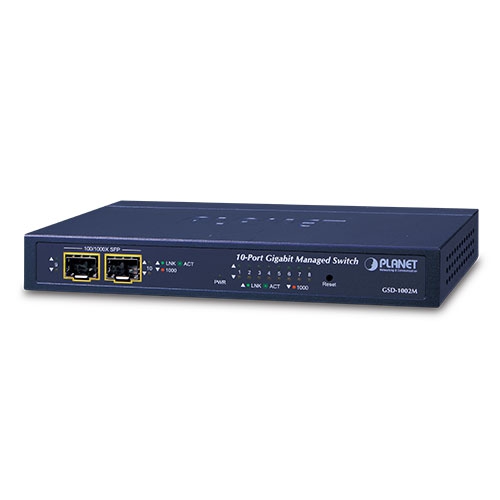

Planet GSD-1002M 8-Port 10/100/1000Mbps + 2-Port 100/1000X SFP Managed Desktop Switch

Hardware Specifications Copper Ports 8 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X port SFP/mini-GBIC Slots 2 100/1000BASE-X SFP interfaces Supports 100/1000Mbps dual mode and DDM Reset Button < 5 sec: System reboot > 5 sec: Factory Default LED System: Power (Green) 10/100/1000T RJ45 Interfaces (Port 1 to Port 8): 1000Mbps (Orange), LNK/ACT (Green) 100/1000Mbps SFP Interfaces (Port 9 to Port 10): 1000Mbps (Orange), LNK/ACT (Green) Thermal Fan Fan-less design Power Requirements IEEE 802.3af/at PoE 48V ~ 56V DC in-line power 12V DC power adapter ESD Protection 6KV DC Power Consumption / Dissipation 10.9 watts / 37.2 BTU Dimensions (W x D x H) 191 x 86 x 26 mm Weight 396g Enclosure Metal Switch Specifications Switch Architecture Store-and-Forward Switch Fabric 20Gbps/non-blocking Switch Throughput@64Bytes 14.8Mpps@64Bytes Address Table 8K entries Shared Data Buffer 4.1 megabits Flow Control IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex Jumbo Frame 10K bytes Layer 2 Functions Port Mirroring TX / RX / Both Many-to-1 monitor VLAN 802.1Q Tagged VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs 802.1ad Q-in-Q tunneling Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Link Aggregation IEEE 802.3ad LACP and static trunk Supports 8 groups of 8-port trunk Spanning Tree Protocol STP / RSTP / MSTP IGMP Snooping IGMP (v2 / v3) Snooping IGMP Querier Up to 256 multicast groups MLD Snooping MLD (v1 / v2) Snooping, up to 256 multicast groups QoS 8 mapping ID to 8 level priority queues Port Number 802.1p priority 802.1Q VLAN tag DSCP field in IP Packet Traffic classification based, Strict priority and WRR Ring Supports ERPS, and complies with ITU-T G.8032 Security Functions Access Control List IPv4/IPv6 IP-based ACL/MAC-based ACL Port Security IEEE 802.1X – Port-based authentication Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication MAC Security IP-MAC port binding MAC filter Static MAC address Enhanced Security DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard Management Functions Basic Management Interfaces Web browser/Telnet/SNMP v1, v2c Secure Management Interfaces SSHv2, TLS v1.2, SNMP v3 System Management Firmware upgrade by HTTP/TFTP protocol through Ethernet network LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS System/CloudViewer Event Management Remote/Local Syslog System log SNMP MIBs RFC 1213 MIB-II RFC 1215 Generic Traps RFC 1493 Bridge MIB RFC 2674 Bridge MIB Extensions RFC 2737 Entity MIB (Version 2) RFC 2819 RMON (1, 2, 3, 9) RFC 2863 Interface Group MIB RFC 3635 Ethernet-like MIB Standards Conformance Regulatory Compliance FCC Part 15 Class B, CE Standards Compliance IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x Flow Control and Back Pressure IEEE 802.3ad Port Trunk with LACP IEEE 802.1D Spanning Tree protocol IEEE 802.1w Rapid Spanning Tree protocol IEEE 802.1s Multiple Spanning Tree protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af (Power over Ethernet) IEEE 802.3at (High Power over Ethernet) RFC 768 UDP RFC 783 TFTP RFC 793 TCP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 RFC 3810 MLD version 2 ITU G.8032 ERPS Ring Environment Operating Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) Storage Temperature: -20 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
