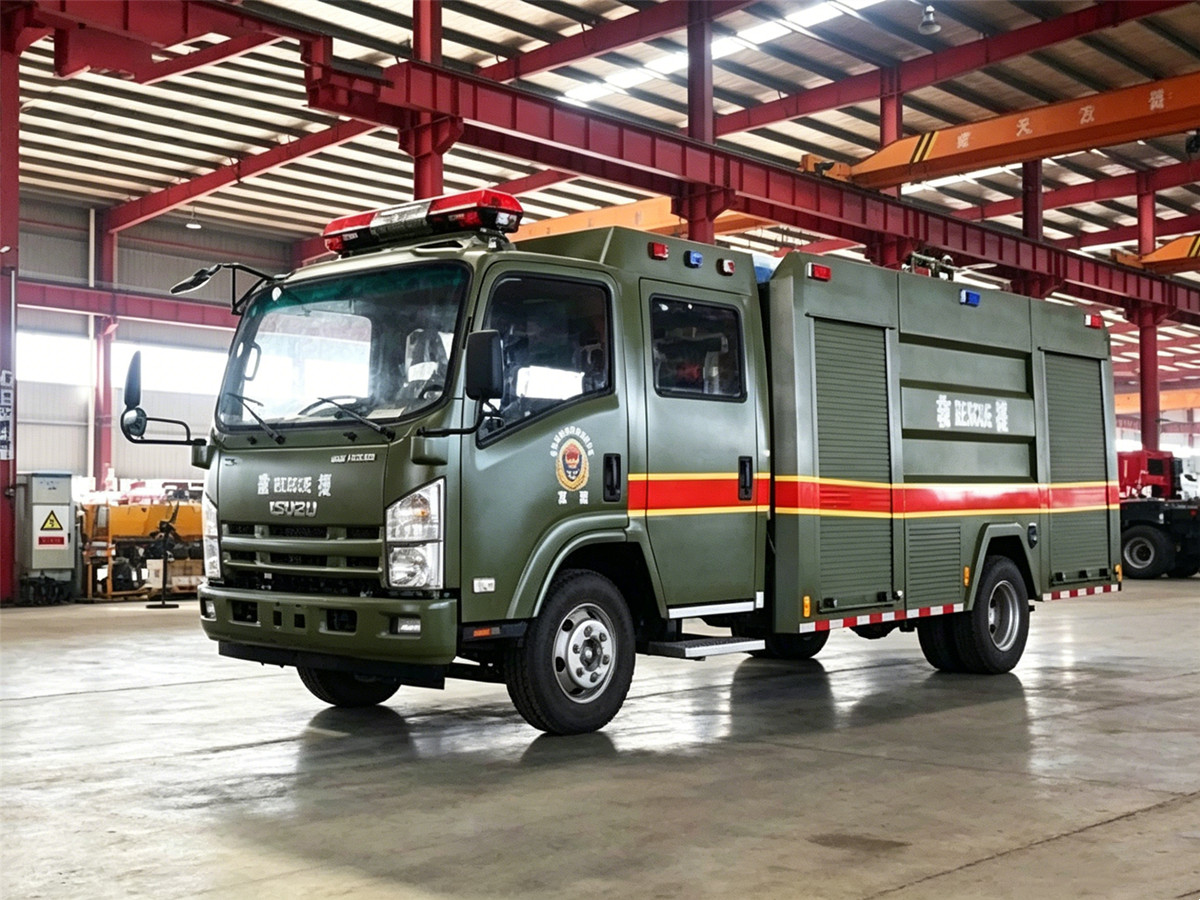

ISUZU Water Tank Fire Truck

Water Filling Injection Inlet 2 nos. DN100 One-way Valve Injection Inlet 2 Nos. DN100 Overflow Device & Ventilation Outlet 1 nos. DN80 Lower Outlet for Pump Feeding 1 nos. DN80 Drainage Outlet Ball Valves 2 nos. DN40 Surplus Water Discharge Pipeline For protection of water pump and valves Cooling Water Pipeline For protection of PTO normal operation Water Level Indicator 2 nos. Inlet Line Sieve 1 nos. Hose Reel 2 nos. 3/4 inch diameter, 20m length Variable Nozzle Type Perpendicular foggy, spray, foam Nozzle Elevation Angle 70° Nozzle Depression Angle -15° Nozzle Flow Rate 80 L/s
