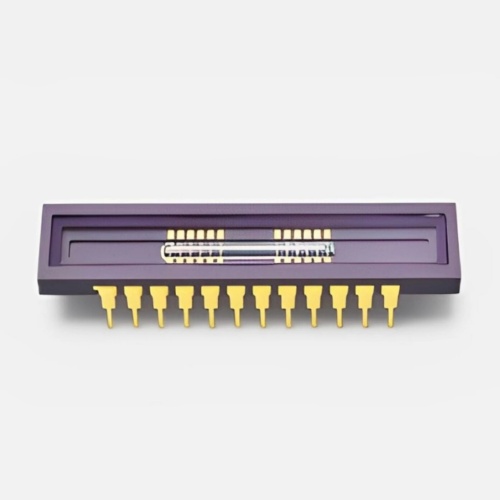

Hamamatsu S12551-1024 High-Speed High-Sensitivity CCD Line Sensor for Industrial Applications

Hamamatsu S12551-1024 High-Speed, High-Sensitivity CCD Line Sensor for Industrial Applications Specifications Brand: Hamamatsu Model: S12551-1024 Origin: Japan I .Three Core Performance Features (Professional Breakdown of Highlights in the Image) 1. High-Speed Response Core Specs: Maximum 40 MHz readout rate Performance Advantage: Fast charge readout speed supports high-line-speed synchronized acquisition on production lines. It can capture one-dimensional images of fast-moving materials in real time, without image trailing or signal lag, significantly boosting the throughput of sorting and online inspection equipment. – Hamamatsu Photonics K.K. Applicable Scenarios: High-speed material sorting, online printing defect inspection. 2. High-Sensitivity Detection Core Specs: Typical node sensitivity 13 μV/e⁻ (Note: The 13MV/E marked in the image is a typo; the standard unit is μV/e⁻) Performance Advantage: Single pixel size of 14×14 μm provides sufficient light-sensitive area, accurately detecting weak light signals in UV, visible, and near-infrared ranges. It can output clear, layered signals even in low-light conditions, distinguishing subtle color differences and material transparency variations. – Hamamatsu Photonics K.K. Applicable Scenarios: Trace spectral analysis, defect detection in light-colored or transparent materials. 3. Stable and Reliable Operation Core Features: Built-in electronic shutter, anti-blooming circuit Performance Advantage: The electronic shutter precisely controls exposure time, preventing signal overflow in high-brightness areas (anti-blooming). It produces consistent data in complex industrial lighting and electromagnetic environments, ensuring minimal drift in long-term continuous inspection and maintaining stable automation line quality. Applicable Scenarios: Outdoor high-brightness sorting, 24/7 industrial quality inspection. II. Complete Basic Specifications Pixel Architecture: 1024-channel one-dimensional linear array, single pixel 14×14 μm, total light-sensitive length 14.336 mm Spectral Range: 200 nm ~ 1000 nm, covering UV, visible, and near-infrared regions Package Type: Ceramic package with through-hole pins, temperature-resistant and well-sealed Readout Mode: Single-channel high-speed output; can directly acquire data with compatible timing driver circuit III. Main Industrial Applications Material Color Sorting: Sorting equipment for grain, plastic, ore; distinguishing impurities from acceptable materials Online Defect Inspection: Detecting scratches and holes on films, paper, or lithium battery electrodes Spectral Analysis Equipment: Small spectrometers, transparency and spectral detection for water or oil Dimensional Measurement: High-precision one-dimensional width or gap measurement of conveyor line workpieces
