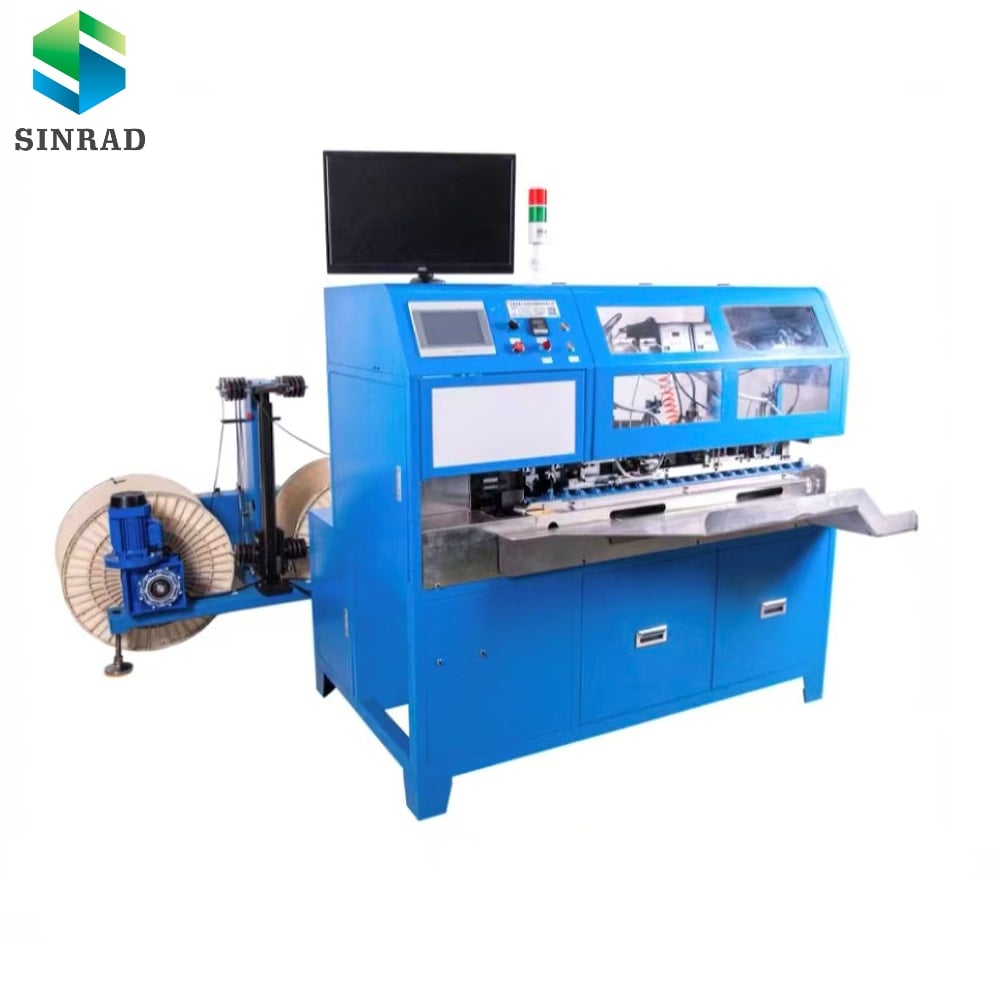

High-Speed Dual End Cutting Stripping and Soldering Machine for 2464 cable

Cutting Stripping and Soldering Machine for 2464 cable This machine is a 2468 High-Speed Head-Tail Integrated Machine designed for automatic processing of 2464 wires with all DC terminals. The fully automated workflow includes: dual-wire feeding, cutting, tail stripping, semi-stripping, twisting, fluxing, tinning, tin trimming, wire removal, automatic arrangement, head stripping, visual rotation polarity detection, head stripping and cutting to length, automatic terminal feeding, wire sensing, solder wire feeding, automatic welding, and secondary polarity detection. 1. Tail twisting and tinning fully touch-controlled adjustment, no need to remove screws. 2. Human-machine interface PLC control, easy to adjust and operate, individual station actions easily realized on interface. 3. High automation, creating high productivity. 4. Saves 5-6 workers compared to original production method, simultaneously saves 3-4 times production area. 5. Dual polarity detection, 100% elimination of polarity defects. Core components PLC Key selling points High Automation, Dual Polarity Detection, Touch-controlled Adjustment Function Automatic Wire Cutting, Stripping, Twisting, Tinning, and Soldering Applicable wire 2464 Cable Applicable terminals All DC Terminals Wire feeding size >=70mm Production capacity 1500-1800 PCS/H Solder wire 0.8/1.0mm Air source pressure 0.5-0.8MPa Voltage AC220V Weight 450kg Dimension 3000*1850*1400mm
