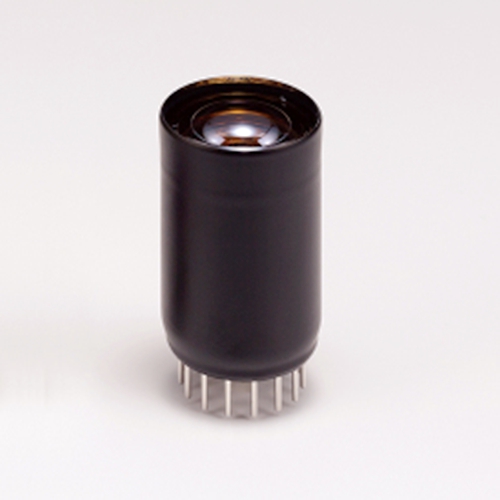

hamamatsu Photomultiplier tube R3550P-600

hamamatsu Photomultiplier tube R3550P-600 Download Datasheet: hamamatsu Photomultiplier tube R3550P-600 25mm dia., Head-on type, Low noise super bialkali photocathode (Effective area : 22 mm dia./Spectral response : 300 nm to 650 nm), Photon counting type of R3550A-600 Specifications Type Head-on type Tube Size Dia.25 mm Photocathode Area Shape Round Photocathode Area Size Dia.22 mm Wavelength (Short) 300 nm Wavelength (Long) 650 nm Wavelength (Peak) 375 nm Photocathode Material Low noise super bialkali Window Material Borosilicate glass Dynode Structure Circular and linear-focused Dynode Stages 10 [Max. Rating] Anode to Cathode Voltage 1250 V [Max. Rating] Average Anode Current 0.1 mA Anode to Cathode Supply Voltage 1000 V [Cathode] Luminous Sensitivity Min. 60 μA/lm [Cathode] Luminous Sensitivity Typ. 80 μA/lm [Cathode] Blue Sensitivity Index (CS 5-58) Typ. 10 [Anode] Luminous Sensitivity Min. 50 A/lm [Anode] Luminous Sensitivity Typ. 160 A/lm [Anode] Gain Typ. 2.0 x 106 [Anode] Dark Current (after 30min.) Typ. 0.5 nA [Anode] Dark Current (after 30min.) Max. 4 nA [Time Response] Rise Time Typ. 1.5 ns [Time Response] Transit Time Typ. 17 ns
